RCLAMP0564P.TNT

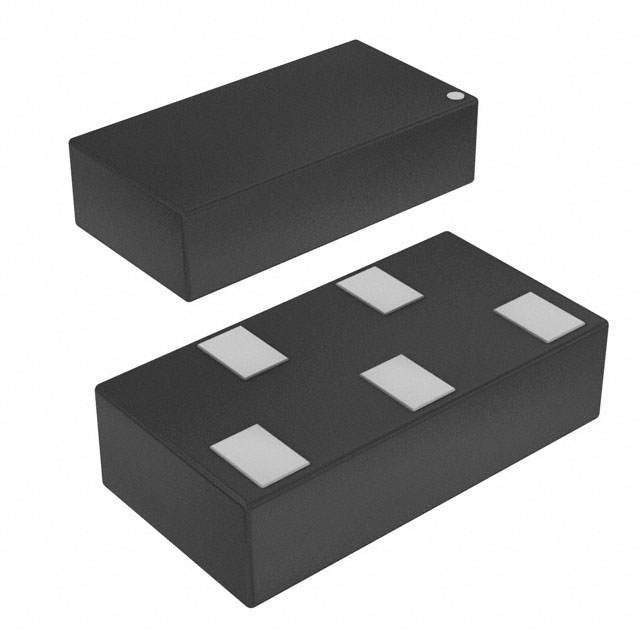

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RCLAMP0564P.TNT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RCLAMP0564P.TNT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RCLAMP0564P.TNT |
|---|---|
| Manufacturer | Semtech |
| Description | TVS DIODE 5V 4V SGP2010N5 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.456 | $0.403 | $0.364 | $0.319 | $0.28 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.247 | $0.195 | $0.182 | $0.173 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | RCLAMP0564P.TNT | Manufacturer | Semtech |
|---|---|---|---|
| Description | TVS DIODE 5V 4V SGP2010N5 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 123720 pcs | Data sheet | RClamp0564P |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Clamping (Max) @ Ipp | 4V | Voltage - Breakdown (Min) | 6.5V |
| Unidirectional Channels | 4 | Type | Steering (Rail to Rail) |
| Supplier Device Package | SGP2010N5 | Series | RailClamp® |
| Power Line Protection | Yes | Power - Peak Pulse | - |
| Packaging | Cut Tape (CT) | Package / Case | 5-UFDFN |
| Other Names | RCLAMP0564P.TNTCT | Operating Temperature | -40°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) | Capacitance @ Frequency | 0.17pF @ 1MHz |
| Applications | HDMI |
