RCLAMP0561Z.TNT

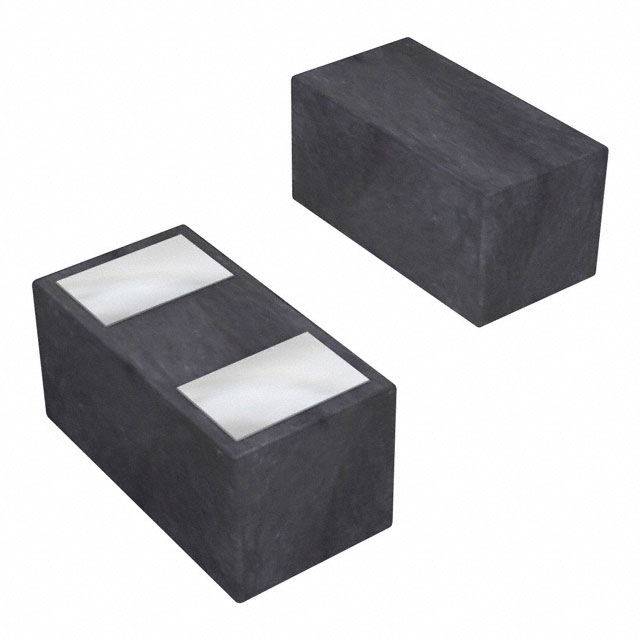

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RCLAMP0561Z.TNT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RCLAMP0561Z.TNT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RCLAMP0561Z.TNT |
|---|---|
| Manufacturer | Semtech |
| Description | TVS DIODE 5.5V 20V SGP0603P2X3 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | ||||
|---|---|---|---|---|---|
| $0.066 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | RCLAMP0561Z.TNT | Manufacturer | Semtech |
|---|---|---|---|
| Description | TVS DIODE 5.5V 20V SGP0603P2X3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 308322 pcs | Data sheet | RClamp0561Z |
| Category | Circuit Protection | Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Voltage - Clamping (Max) @ Ipp | 20V | Voltage - Breakdown (Min) | 6.5V |
| Type | Zener | Supplier Device Package | SGP0603P2X3 |
| Series | RailClamp® | Power Line Protection | No |
| Power - Peak Pulse | 40W | Packaging | Tape & Reel (TR) |
| Package / Case | 0201 (0603 Metric) | Operating Temperature | -40°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Current - Peak Pulse (10/1000µs) | 2A (8/20µs) |
| Capacitance @ Frequency | 0.12pF @ 1MHz | Bidirectional Channels | 1 |
| Applications | HDMI |
