Home > Products > Motors, Solenoids, Driver Boards/Modules > Stepper Motors > 316020002

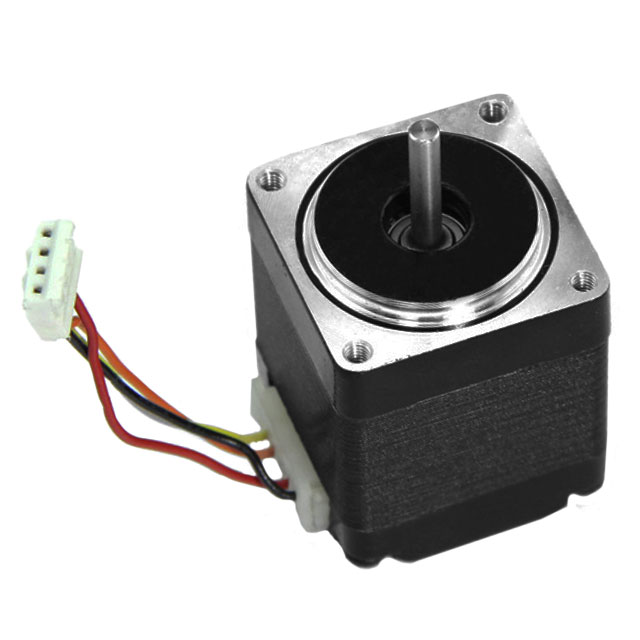

316020002

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 316020002 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	316020002
Manufacturer	Seeed
Description	STEP MOTOR HYBRD BIPOLAR 12-24V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 6436 pcs
Reference Price (In US Dollars)	3 pcs
Reference Price (In US Dollars)	$5.99

Product parameter

Product parameter

Part Number	316020002	Manufacturer	Seeed
Description	STEP MOTOR HYBRD BIPOLAR 12-24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6436 pcs	Data sheet
Category	Motors, Solenoids, Driver Boards/Modules	Weight	0.234 lb (106.14g)
Voltage - Rated	12 ~ 24VDC	Type	Hybrid
Torque - Holding (oz-in / mNm)	8.33 / 58.84	Termination Style	Wire Leads with Connector
Steps per Revolution	200	Step Angle	1.8°
Size / Dimension	Square - 1.110" x 1.110" (28.20mm x 28.20mm)	Series	-
Rotor Inertia	-	Operating Temperature	-
NEMA Frame Size	11	Mounting Hole Spacing	1.281" (32.53mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Length - Shaft and Bearing	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Round Shaft
Diameter - Shaft	0.197" (5.00mm)	Detailed Description	Bipolar Stepper Motor Frame Size 11 200 Step 0.45A 12 ~ 24VDC
Current Rating	450mA	Coil Type	Bipolar
Coil Resistance	11 Ohms	Approvals	-
Accuracy	-
