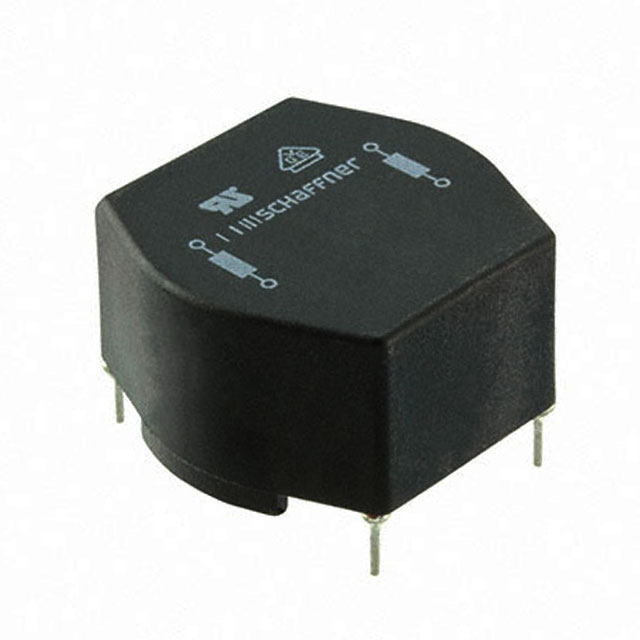

RN142-6-02-1M8
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RN142-6-02-1M8 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy RN142-6-02-1M8 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | RN142-6-02-1M8 |
|---|---|
| Manufacturer | Schaffner EMC, Inc. |
| Description | CMC 1.8MH 6A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.093 | $1.002 | $0.656 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $0.583 | $0.546 | $0.538 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | RN142-6-02-1M8 | Manufacturer | Schaffner EMC, Inc. |
|---|---|---|---|
| Description | CMC 1.8MH 6A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56599 pcs | Data sheet | RN Series Datasheet |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 300V | Size / Dimension | 1.303" L x 1.280" W (33.10mm x 32.50mm) |
| Series | RN | Ratings | - |
| Packaging | Tube | Package / Case | Horizontal, 4 PC Pin |
| Other Names | 816525 817-2139 |
Operating Temperature | -40°C ~ 100°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 1.8mH @ 10kHz |
| Height (Max) | 0.787" (20.00mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 1.8mH @ 10kHz 2 Line Common Mode Choke Through Hole 6A DCR 20 mOhm (Typ) |
| DC Resistance (DCR) (Max) | 20 mOhm (Typ) | Current Rating (Max) | 6A |
| Approvals | ENEC, UR, VDE |
