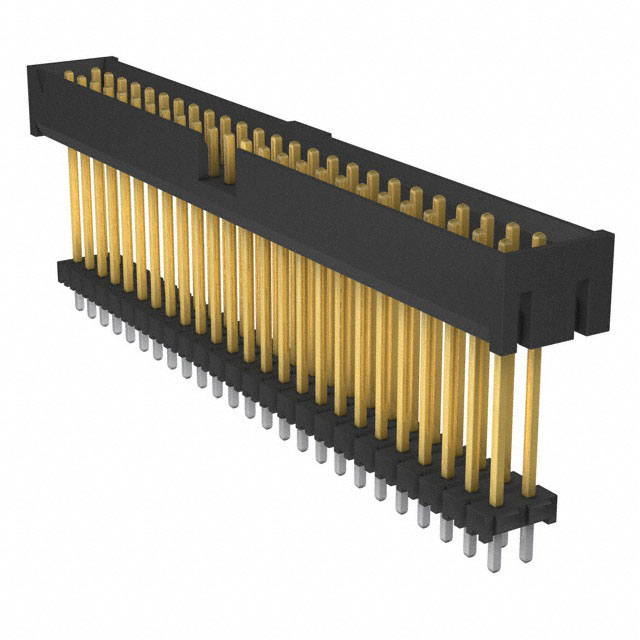

ZLTMM-125-74-S-D-588
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZLTMM-125-74-S-D-588 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ZLTMM-125-74-S-D-588 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ZLTMM-125-74-S-D-588 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SHROUDED HEADER 50POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $5.993 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ZLTMM-125-74-S-D-588 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SHROUDED HEADER 50POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5751 pcs | Data sheet | ZLTMM DrawingLTMM, ZLTMM Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Flex Stack, ZLTMM |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | 0.673" (17.09mm) |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 50 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.588" (14.94mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 50 position 0.079" (2.00mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.090" (2.29mm) |
| Contact Length - Mating | 0.120" (3.05mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
