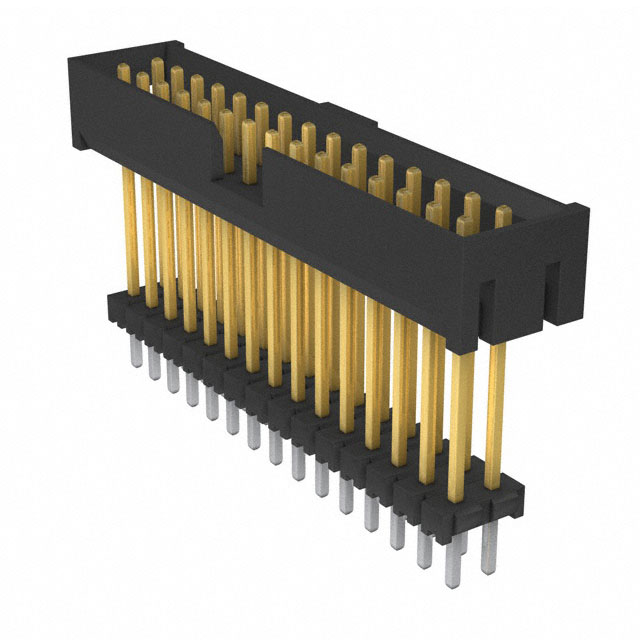

ZLTMM-115-74-F-D-560
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZLTMM-115-74-F-D-560 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ZLTMM-115-74-F-D-560 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ZLTMM-115-74-F-D-560 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HEADER 30POS DUAL 2MM T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $2.023 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ZLTMM-115-74-F-D-560 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HEADER 30POS DUAL 2MM T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14904 pcs | Data sheet | ZLTMM DrawingLTMM, ZLTMM Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Flex Stack, ZLTMM |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | 0.673" (17.09mm) |
| Other Names | Q8101984 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.559" (14.20mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 30 position 0.079" (2.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.119" (3.02mm) | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
