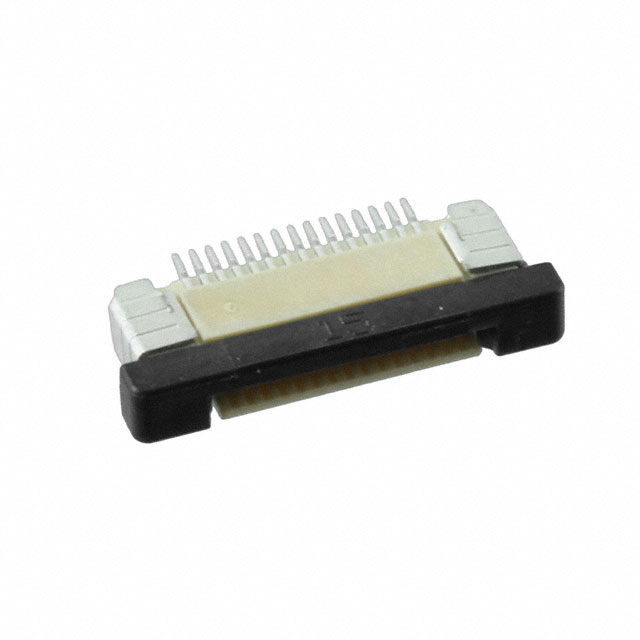

ZF5-15-02-T-WT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZF5-15-02-T-WT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ZF5-15-02-T-WT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ZF5-15-02-T-WT |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN FFC TOP 15POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.858 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ZF5-15-02-T-WT | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN FFC TOP 15POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44077 pcs | Data sheet | ZF5 Series |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Series | ZF5 |
| Pitch | 0.020" (0.50mm) | Packaging | Tube |
| Operating Temperature | -55°C ~ 105°C | Number of Positions | 15 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Material Flammability Rating | - |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Natural |
| Height Above Board | 0.079" (2.00mm) | Flat Flex Type | FFC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 15 Position FFC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Top |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
