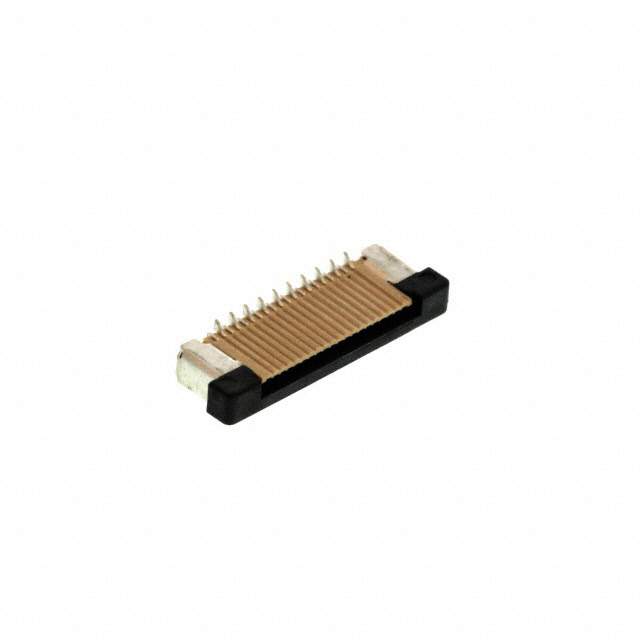

ZF5S-20-03-T-WT-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZF5S-20-03-T-WT-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ZF5S-20-03-T-WT-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ZF5S-20-03-T-WT-TR |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | ZERO INSERTION FORCE .5MM ASSEMB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 975 pcs | ||||
|---|---|---|---|---|---|
| $0.463 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ZF5S-20-03-T-WT-TR | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | ZERO INSERTION FORCE .5MM ASSEMB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 76927 pcs | Data sheet | ZF5S Series DatasheetZF5S-yy-yy-y-WT-y-yy DrawingZF5S-xx-xx-xx-WT-xx Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Series | ZF5S |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Operating Temperature | -55°C ~ 105°C | Number of Positions | 20 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Material Flammability Rating | - |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP) | Housing Color | Natural |
| Height Above Board | 0.079" (2.00mm) | Flat Flex Type | FFC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 20 Position FFC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount | Current Rating | 1.8A per Contact |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Vertical, 1 Sided |
| Cable End Type | Straight | Actuator Material | Liquid Crystal Polymer (LCP) |
| Actuator Color | Black |
