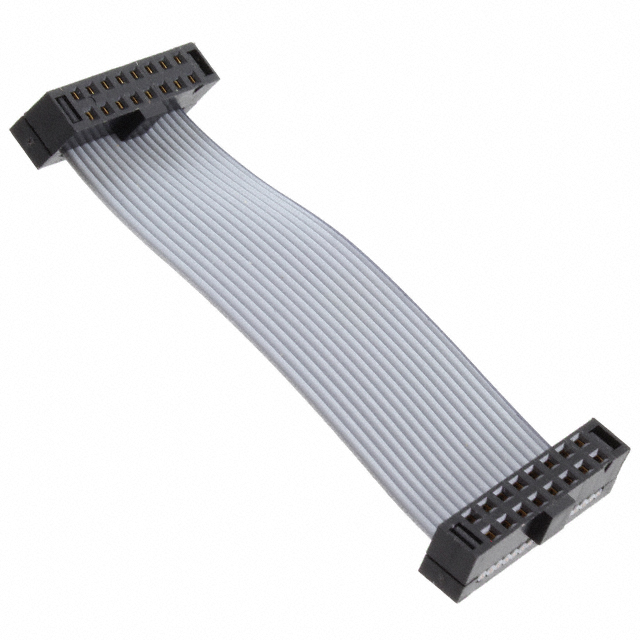

TCSD-08-D-02.00-01-N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TCSD-08-D-02.00-01-N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TCSD-08-D-02.00-01-N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TCSD-08-D-02.00-01-N |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 2MM DOUBLE ROW FEMALE IDC ASSY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.191 | $3.003 | $2.919 | $2.722 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.628 | $2.44 | $2.393 | $2.299 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TCSD-08-D-02.00-01-N | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 2MM DOUBLE ROW FEMALE IDC ASSY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13996 pcs | Data sheet | TCSD Series DatasheetTCSD-x01-x Drawing |
| Category | Cable Assemblies | Usage | - |
| Shielding | Unshielded | Series | Tiger Eye™ TCSD |
| Pitch - Connector | 0.079" (2.00mm) | Pitch - Cable | 0.039" (1.00mm) |
| Other Names | SAM10070 | Number of Rows | 2 |
| Number of Positions | 16 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 3 Weeks | Length | 0.167' (50.80mm, 2.00") |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Polarizing Key |
| Detailed Description | 16 Position Cable Assembly Rectangular Socket to Socket 0.167' (50.80mm, 2.00") | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Socket to Socket |
| Color | Gray, Ribbon | Cable Termination | IDC |
