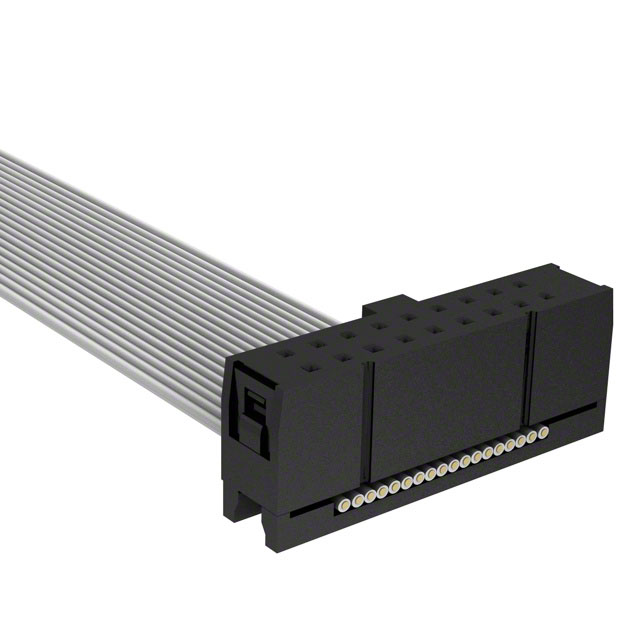

TCSD-08-D-02.00-01-N-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TCSD-08-D-02.00-01-N-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TCSD-08-D-02.00-01-N-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TCSD-08-D-02.00-01-N-R |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CABLE ASSEM 2MM 16POS DBL END 2" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.162 | $2.976 | $2.892 | $2.697 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.604 | $2.418 | $2.371 | $2.278 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TCSD-08-D-02.00-01-N-R | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CABLE ASSEM 2MM 16POS DBL END 2" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13763 pcs | Data sheet | TCSD Series DatasheetTCSD-x01-x Drawing |
| Category | Cable Assemblies | Usage | - |
| Shielding | Unshielded | Series | Tiger Eye™ TCSD |
| Pitch - Connector | 0.079" (2.00mm) | Pitch - Cable | 0.039" (1.00mm) |
| Other Names | Q3206546B SAM8872 TCSD-08-D-02.00-01-N-R-ND |
Number of Rows | 2 |
| Number of Positions | 16 | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 3 Weeks | Length | 0.167' (50.80mm, 2.00") |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Polarizing Key |
| Detailed Description | 16 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.167' (50.80mm, 2.00") | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Socket to Socket, Reversed |
| Color | Gray, Ribbon | Cable Termination | IDC |
