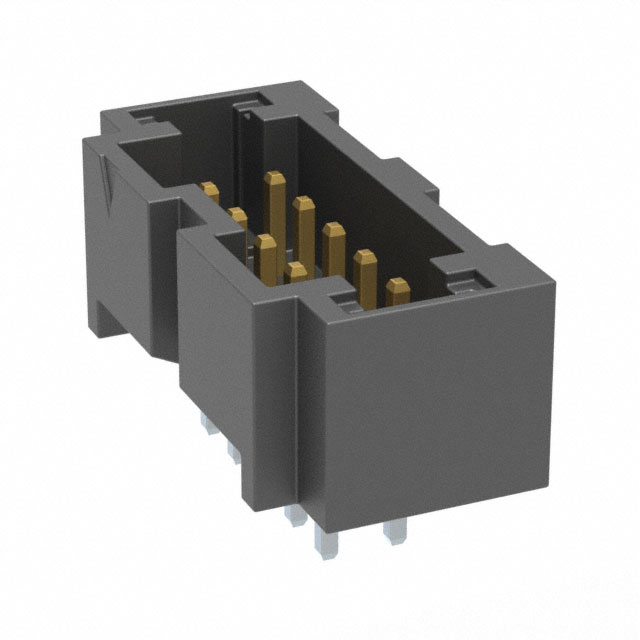

T2M-105-01-L-D-TH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy T2M-105-01-L-D-TH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy T2M-105-01-L-D-TH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | T2M-105-01-L-D-TH |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | T2M 2MM SHROUDED TERMINAL STRIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.165 | $1.117 | $0.93 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.791 | $0.675 | $0.605 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | T2M-105-01-L-D-TH | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | T2M 2MM SHROUDED TERMINAL STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 56275 pcs | Data sheet | T2M-1yy-yy-y-D-yy-yy DrawingT2M Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Tiger Eye™ T2M |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | 0.302" (7.67mm) |
| Other Names | SAM11997 T2M-105-01-L-D-TH-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.228" (5.80mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 10 position 0.079" (2.00mm) |
| Current Rating | 3.8A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.117" (2.97mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
