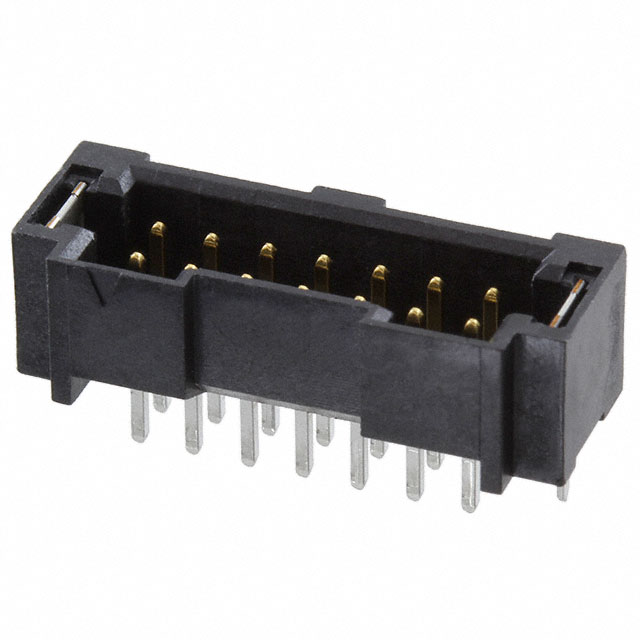

T2M-107-01-L-D-TH-WT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy T2M-107-01-L-D-TH-WT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy T2M-107-01-L-D-TH-WT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | T2M-107-01-L-D-TH-WT |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | T2M 2MM SHROUDED TERMINAL STRIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 29 pcs | 116 pcs | ||
|---|---|---|---|---|---|
| $1.32 | $1.161 | $1.056 | |||
| 522 pcs | 1015 pcs | 5017 pcs | |||
| $0.897 | $0.765 | $0.686 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | T2M-107-01-L-D-TH-WT | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | T2M 2MM SHROUDED TERMINAL STRIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54200 pcs | Data sheet | T2M-1yy-yy-y-D-yy-yy DrawingT2M Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Tiger Eye™ T2M |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | 0.302" (7.67mm) |
| Other Names | SAM9147 T2M-107-01-L-D-TH-WT-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.228" (5.80mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 14 position 0.079" (2.00mm) | Current Rating | 3.8A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.117" (2.97mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
