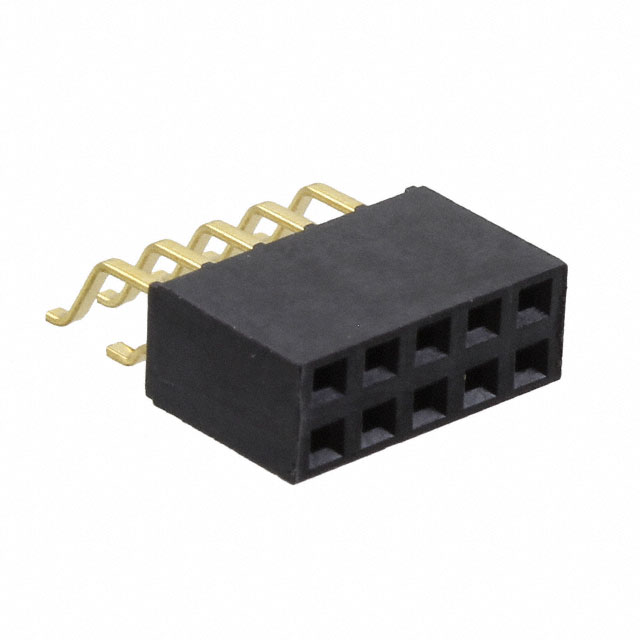

SMH-105-02-G-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMH-105-02-G-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMH-105-02-G-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMH-105-02-G-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .100 C.L. HORIZONTAL SMT SOCKET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.043 | $0.864 | $0.648 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.54 | $0.479 | $0.45 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMH-105-02-G-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .100 C.L. HORIZONTAL SMT SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80245 pcs | Data sheet | SMH Series DatasheetSMH-1 DrawingSMH (Double Row) SMT FootprintSMH (Single Row) SMT Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | SMH | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | SAM11812 SMH-105-02-G-D-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.195" (4.95mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 10 Position Receptacle Connector Surface Mount, Right Angle | Current Rating | - |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 20.0µin (0.51µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
