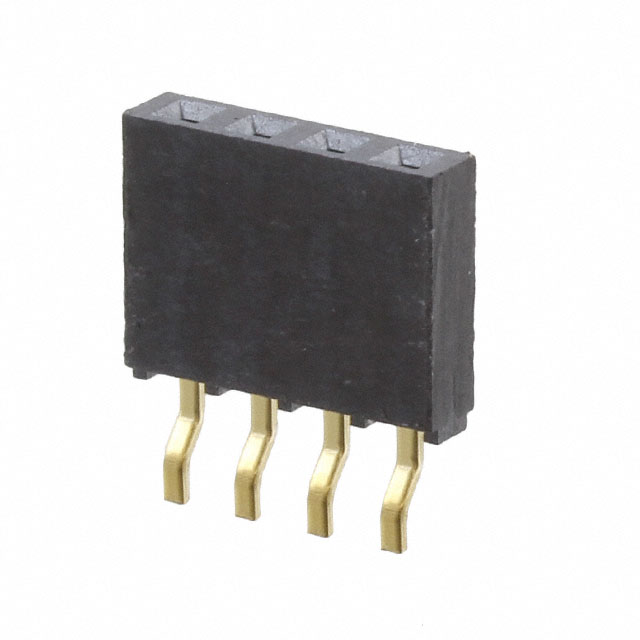

SMH-104-02-G-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMH-104-02-G-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMH-104-02-G-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMH-104-02-G-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .100 C.L. HORIZONTAL SMT SOCKET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.603 | $0.498 | $0.374 | $0.311 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.276 | $0.259 | $0.254 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMH-104-02-G-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .100 C.L. HORIZONTAL SMT SOCKET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83005 pcs | Data sheet | SMH Series DatasheetSMH-1 DrawingSMH (Double Row) SMT FootprintSMH (Single Row) SMT Footprint |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | SMH | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | SAM11810 SMH-104-02-G-S-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.095" (2.41mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 4 Position Receptacle Connector Surface Mount, Right Angle |
| Current Rating | - | Contact Type | Forked |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
