SMB7H-P-C-H-ST-CA3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMB7H-P-C-H-ST-CA3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMB7H-P-C-H-ST-CA3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMB7H-P-C-H-ST-CA3 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SMB PLUG STR 75 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.423 | $2.322 | $2.12 | $2.019 | $1.918 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.717 | $1.616 | $1.414 | $1.343 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMB7H-P-C-H-ST-CA3 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SMB PLUG STR 75 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24048 pcs | Data sheet | SMB7H-P-C-xx-ST-CA3 DrawingSMB7H Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Crimp | Series | TRUE75™ SMB7H |
| Packaging | - | Other Names | SAM11808 SMB7H-P-C-H-ST-CA3-ND |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |

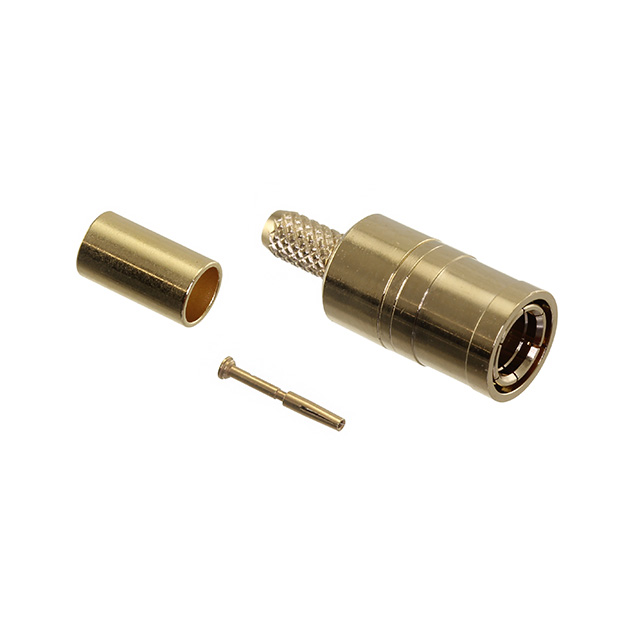

| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule | Impedance | 75 Ohm |
| Housing Color | Gold | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMB Connector Plug, Female Socket 75 Ohm Free Hanging (In-Line) Solder |
| Contact Termination | Solder | Connector Type | Plug, Female Socket |
| Connector Style | SMB | Center Contact Plating | Gold |
| Center Contact Material | Copper Alloy | Cable Group | RG-179 |
| Body Material | Brass | Body Finish | Gold |
