SMB5-J-P-H-RA-TH1

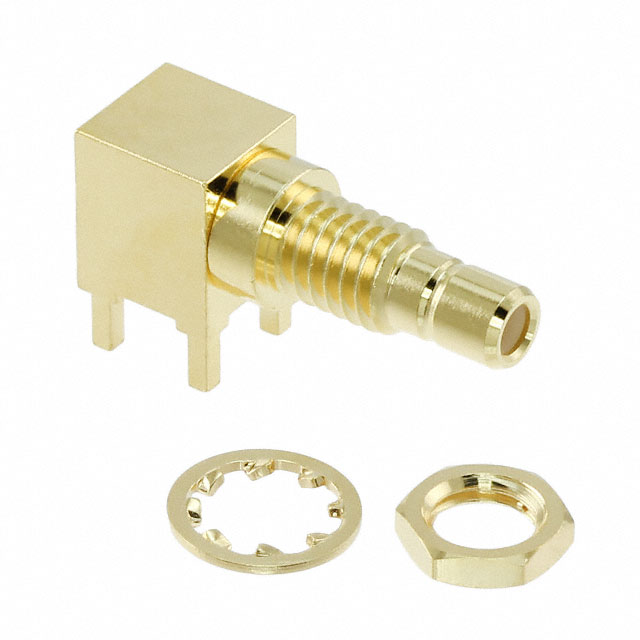

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMB5-J-P-H-RA-TH1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SMB5-J-P-H-RA-TH1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SMB5-J-P-H-RA-TH1 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN SMB JACK R/A 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $4.604 | $4.185 | $4.081 | $3.767 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $3.557 | $3.244 | $3.034 | $2.783 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SMB5-J-P-H-RA-TH1 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN SMB JACK R/A 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13474 pcs | Data sheet | SMB5-J-P-x-RA-TH1 DrawingSMB5 Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Shield Termination | Solder | Series | - |
| Packaging | Tray | Other Names | SAM9951 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 4GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMB Connector Jack, Male Pin 50 Ohm Panel Mount, Through Hole, Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Male Pin |
| Connector Style | SMB | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
