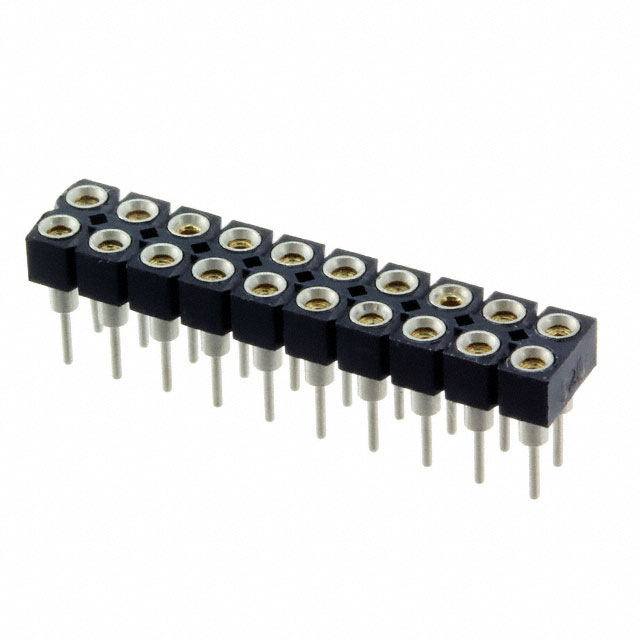

SD-110-T-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD-110-T-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SD-110-T-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD-110-T-2 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN RCPT DOUBLE ROW 20 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.012 | $0.856 | $0.662 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.545 | $0.506 | $0.477 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SD-110-T-2 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN RCPT DOUBLE ROW 20 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65399 pcs | Data sheet | SS,SD(L),SL, HSS-1yy DrawingSS, SD, ESS, ESD, HSS Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | SD | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | Q4967321 SAM8963 SD-110-T-2-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.350" (8.89mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Beryllium Copper |
| Contact Length - Post | 0.125" (3.18mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
