SD-1111

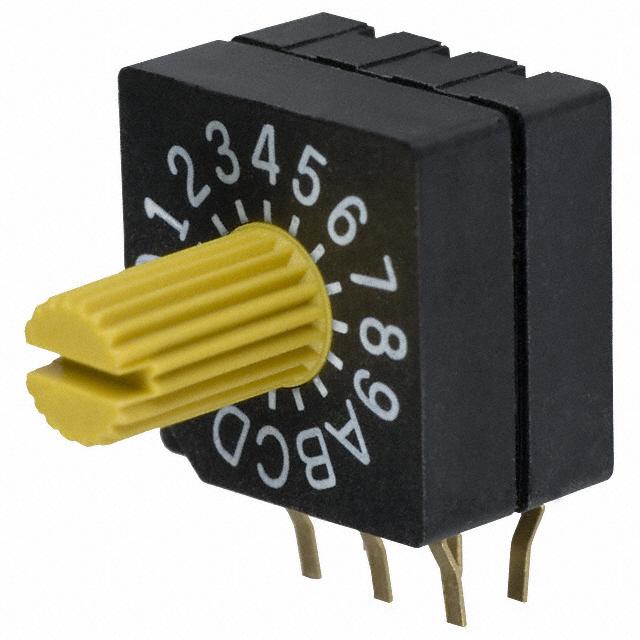

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD-1111 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SD-1111 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD-1111 |
|---|---|
| Manufacturer | Copal Electronics |
| Description | SWITCH ROTARY DIP HEX 100MA 5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.952 | $0.914 | $0.874 | $0.834 | $0.735 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.695 | $0.675 | $0.576 | $0.536 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SD-1111 | Manufacturer | Copal Electronics |
|---|---|---|---|
| Description | SWITCH ROTARY DIP HEX 100MA 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66378 pcs | Data sheet | SD1000, 2000 Series |
| Category | Switches | Washable | No |
| Voltage Rating | 5VDC | Termination Style | PC Pin |
| Series | SD-1000 | Pitch | 0.100" (2.54mm), Full |
| Packaging | Bulk | Other Names | 563-1066 SD1111 |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 16 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | - | Manufacturer Standard Lead Time | 11 Weeks |
| Length | 0.393" (10.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.394" (10.00mm) | Features | - |
| Electrical Life | 20,000 Steps | Detailed Description | Dip Switch Hexadecimal 16 Position Through Hole, Right Angle Rotary with Shaft Actuator 100mA 5VDC |
| Current Rating | 100mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | Hexadecimal |
| Body Material | Polyphenylene Sulfide (PPS) | Actuator Type | Rotary with Shaft |
| Actuator Level | Raised |
