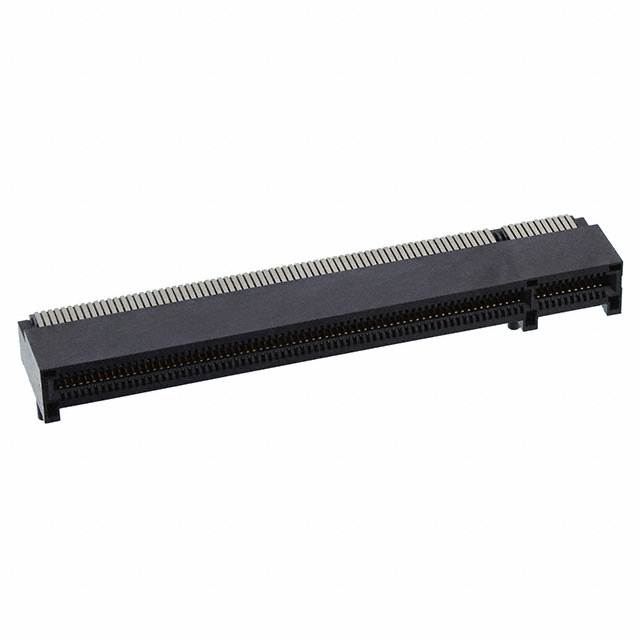

PCIE-164-02-S-D-RA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PCIE-164-02-S-D-RA with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PCIE-164-02-S-D-RA with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PCIE-164-02-S-D-RA |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | PCI EXPRESS EDGE MOUNT ASSEMBLY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.834 | $5.416 | $4.861 | $4.722 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.166 | $3.888 | $3.805 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PCIE-164-02-S-D-RA | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | PCI EXPRESS EDGE MOUNT ASSEMBLY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8375 pcs | Data sheet | PCIE Series CatalogPCIE-zzz-02-z-D-RA Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | PCI Express® (PCIe) | Read Out | Dual |
| Pitch | 0.039" (1.00mm) | Packaging | Tube |
| Other Names | PCIE-164-02-S-D-RA-ND SAM11551 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 164 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Liquid Crystal Polymer (LCP) |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | Board Guide | Contact Type | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Color | - |
| Card Type | PCI Express™ | Card Thickness | 0.062" (1.57mm) |
