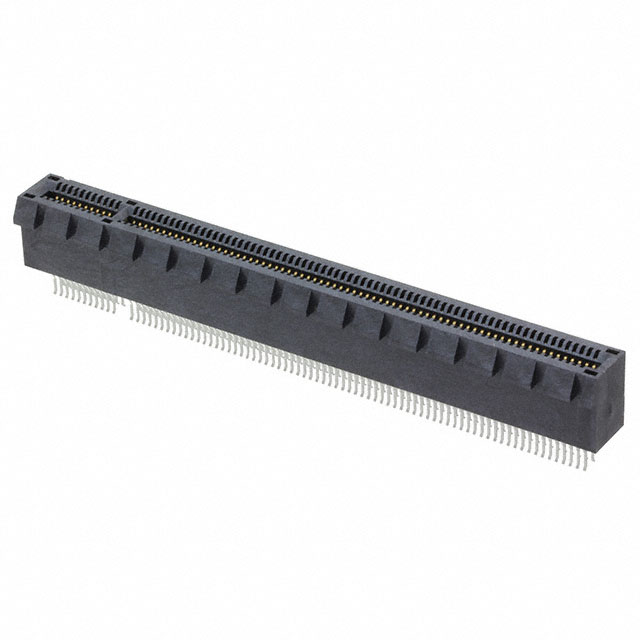

PCIE-164-02-F-D-EMS2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PCIE-164-02-F-D-EMS2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PCIE-164-02-F-D-EMS2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PCIE-164-02-F-D-EMS2 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | PCI EXPRESS EDGE MOUNT ASSY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 12 pcs | 30 pcs | 54 pcs | |
|---|---|---|---|---|---|
| $3.565 | $3.41 | $3.10 | $2.945 | ||
| 102 pcs | 252 pcs | 504 pcs | 1002 pcs | ||
| $2.868 | $2.558 | $2.403 | $2.124 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PCIE-164-02-F-D-EMS2 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | PCI EXPRESS EDGE MOUNT ASSY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14517 pcs | Data sheet | PCIE-yyy-02-y-D-EMSy-yy DrawingPCIE Series Catalog |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | PCI Express® (PCIe) | Read Out | Dual |
| Pitch | 0.039" (1.00mm) | Packaging | Tube |
| Other Names | SAM9746 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 164 | Mounting Type | Board Edge, Straddle Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Liquid Crystal Polymer (LCP) |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | Locking Ramp | Contact Type | - |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Color | Black |
| Card Type | PCI Express™ | Card Thickness | 0.062" (1.57mm) |
