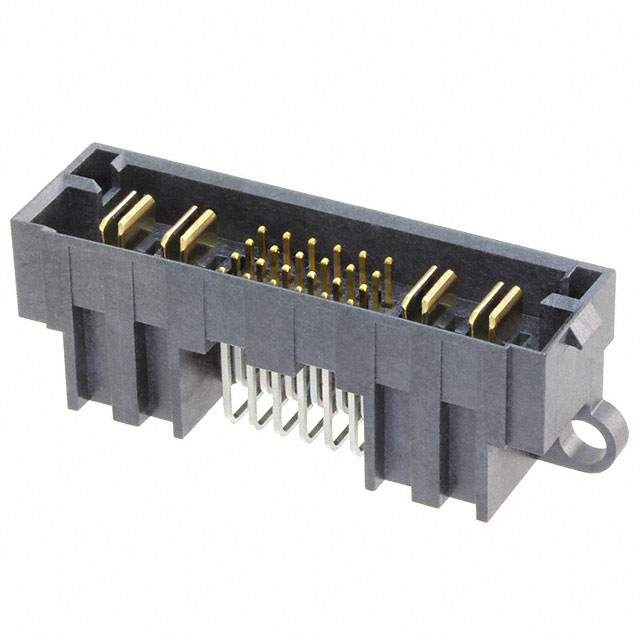

MPTC-02-24-02-01-01-L-RA-SD
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MPTC-02-24-02-01-01-L-RA-SD with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MPTC-02-24-02-01-01-L-RA-SD with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MPTC-02-24-02-01-01-L-RA-SD |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | HDR 4PWR 24SIG R/A CONN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.764 | $2.648 | $2.187 | $1.842 | $1.612 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MPTC-02-24-02-01-01-L-RA-SD | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | HDR 4PWR 24SIG R/A CONN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20237 pcs | Data sheet | MPTC-xx-xx-xx-01-xx-x-RA-xx DrawingMPTC,MPSC Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Power Strip 30™ MPTC |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | MPTC-02-24-02-01-01-L-RA-SD-ND Q9886939 SAM10622 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 28 (24 + 4 Power) | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.490" (12.44mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 28 (24 + 4 Power) position |
| Current Rating | - | Contact Type | Male Blade; Male Pin |
| Contact Shape | - | Contact Material | - |
| Contact Length - Post | 0.107" (2.71mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
