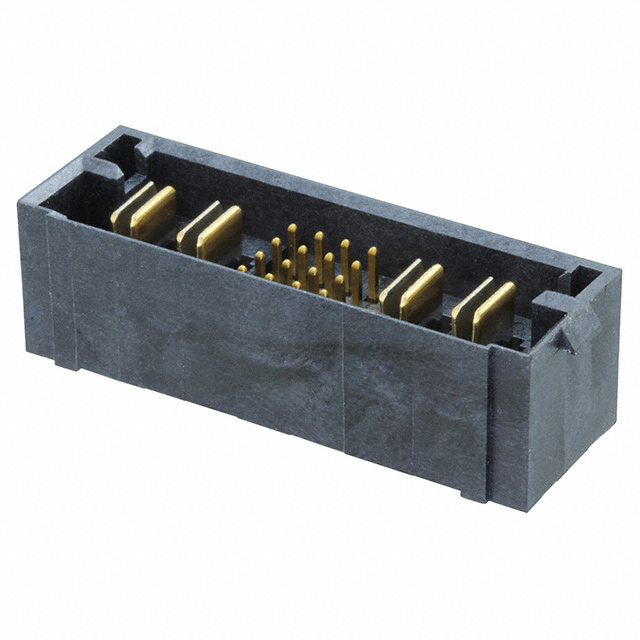

MPTC-02-16-02-6.30-01-L-V
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MPTC-02-16-02-6.30-01-L-V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MPTC-02-16-02-6.30-01-L-V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MPTC-02-16-02-6.30-01-L-V |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | POWER TERMINAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 54 pcs | 108 pcs | 540 pcs | 1026 pcs |
|---|---|---|---|---|---|
| $2.208 | $1.853 | $1.765 | $1.50 | $1.28 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | MPTC-02-16-02-6.30-01-L-V | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | POWER TERMINAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23631 pcs | Data sheet | MPTC,MPSC Series DatasheetMPTC-x-6.30-x-v-x Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Power Strip 30™ MPTC |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | SAM9735 | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 20 (16 + 4 Power) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 14mm | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.448" (11.38mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 20 (16 + 4 Power) position |
| Current Rating | - | Contact Type | Male Blade; Male Pin |
| Contact Shape | - | Contact Material | - |
| Contact Length - Post | 0.107" (2.71mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
