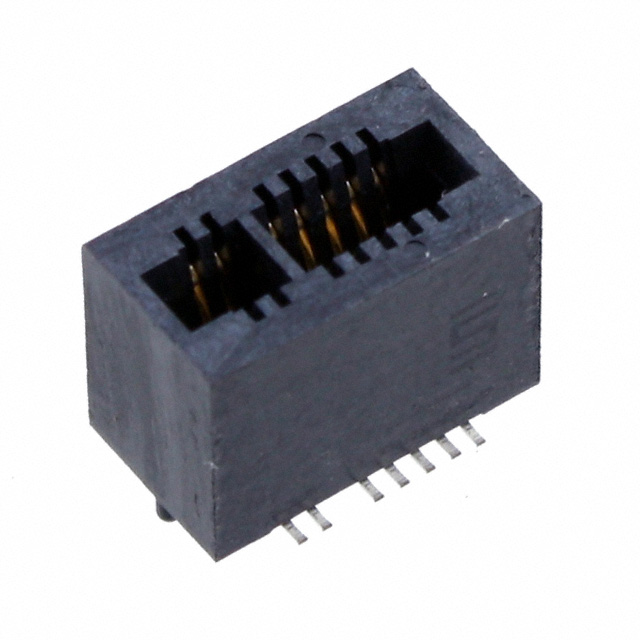

MEC1-108-02-S-D-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MEC1-108-02-S-D-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MEC1-108-02-S-D-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MEC1-108-02-S-D-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN EDGE DUAL FMALE 16POS 0.039 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 45 pcs | 90 pcs | 135 pcs |
|---|---|---|---|---|---|
| $2.386 | $2.288 | $2.089 | $1.989 | $1.89 | |
| 270 pcs | 540 pcs | 1035 pcs | 2520 pcs | ||
| $1.691 | $1.592 | $1.393 | $1.323 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MEC1-108-02-S-D-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN EDGE DUAL FMALE 16POS 0.039 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26082 pcs | Data sheet | MEC1 Series DatasheetMEC1 Series DrawingMEC1 Surface Mount & Mating Card Footprint |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | MEC1 | Read Out | Dual |
| Pitch | 0.039" (1.00mm) | Packaging | Tube |
| Other Names | MEC110802SDA SAM8116 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 16 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Liquid Crystal Polymer (LCP) |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | Board Guide | Contact Type | Loop Bellows |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.062" (1.57mm) |
