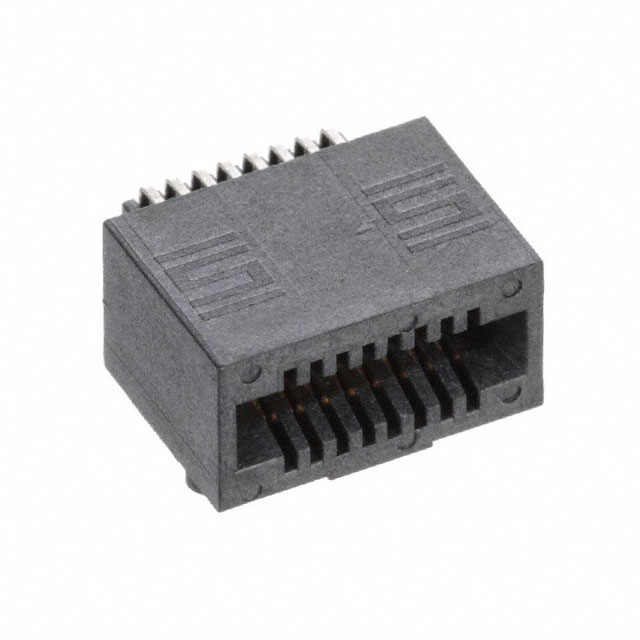

MEC1-108-02-L-D-RA1-NP-SL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MEC1-108-02-L-D-RA1-NP-SL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MEC1-108-02-L-D-RA1-NP-SL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MEC1-108-02-L-D-RA1-NP-SL |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 1MM MINI-EDGE CARD ASSEMBLY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.244 | $2.149 | $1.963 | $1.869 | $1.776 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.589 | $1.495 | $1.308 | $1.243 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MEC1-108-02-L-D-RA1-NP-SL | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 1MM MINI-EDGE CARD ASSEMBLY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28754 pcs | Data sheet | MEC1-RA/EM Series DatasheetEdge Mnt Sockets CatalogMEC1-RA Right Angle & Mating Card FootprintMEC1-1xx-xx-xx-D-RAx-xx-SL-xx Drawing |
| Category | Connectors, Interconnects | Termination | Solder |
| Series | MEC1 | Read Out | Dual |
| Pitch | 0.039" (1.00mm) | Packaging | Tube |
| Other Names | MEC1-108-02-L-D-RA1-NP-SL-ND SAM11476 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions/Bay/Row | - |
| Number of Positions | 16 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Liquid Crystal Polymer (LCP) |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gender | Female | Flange Feature | - |
| Features | Board Lock | Contact Type | Loop Bellows |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Color | Black |
| Card Type | Non Specified - Dual Edge | Card Thickness | 0.062" (1.57mm) |
