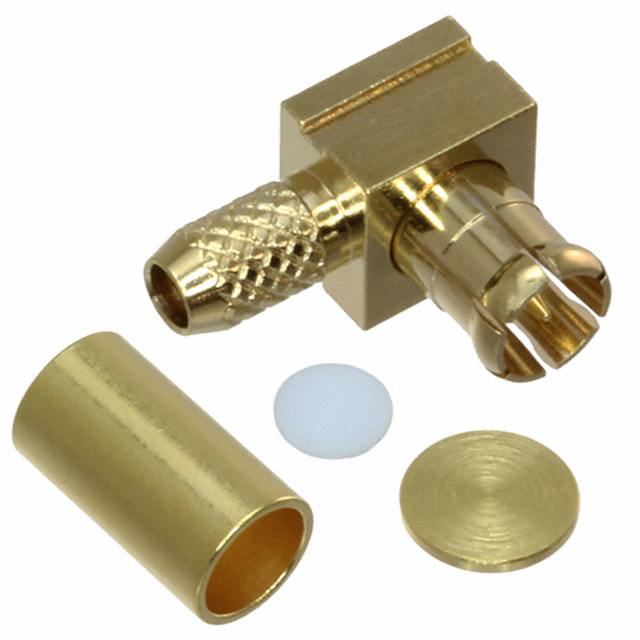

MCX7-P-C-H-RA-CA3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCX7-P-C-H-RA-CA3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MCX7-P-C-H-RA-CA3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MCX7-P-C-H-RA-CA3 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN MCX JACK R/A 75 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.572 | $2.465 | $2.251 | $2.144 | $2.036 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.822 | $1.715 | $1.501 | $1.426 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MCX7-P-C-H-RA-CA3 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN MCX JACK R/A 75 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21683 pcs | Data sheet | MCX7-P-C-H(N)-RA-CA3 DrawingMCX7 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 170V |
| Shield Termination | Crimp | Series | TRUE75™ MCX7 |
| Packaging | Bulk | Other Names | SAM9692 |
| Operating Temperature | -65°C ~ 125°C | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 75 Ohm |
| Housing Color | Gold | Frequency - Max | 4.5GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | MCX Connector Jack, Female Socket 75 Ohm Free Hanging (In-Line), Right Angle Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | MCX | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | RG-179 |
| Body Material | Brass | Body Finish | Gold |
