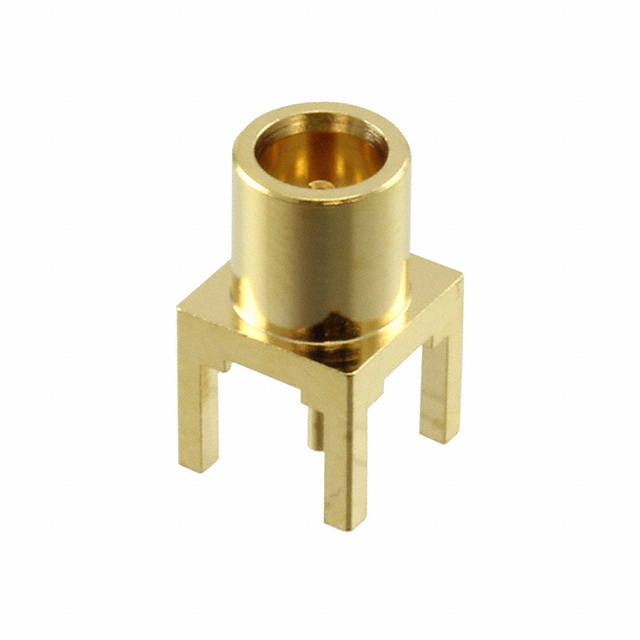

MCX7-J-P-H-ST-TH1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCX7-J-P-H-ST-TH1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MCX7-J-P-H-ST-TH1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MCX7-J-P-H-ST-TH1 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN MCX JACK STR 75 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.519 | $1.457 | $1.336 | $1.275 | $1.214 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.062 | $1.032 | $0.88 | $0.82 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MCX7-J-P-H-ST-TH1 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN MCX JACK STR 75 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 45442 pcs | Data sheet | MCX7-J-P-x-ST-TH1 DrawingMCX7 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 170V |
| Shield Termination | Solder | Series | TRUE75™ MCX7 |
| Packaging | Tray | Other Names | MCX7-J-P-H-ST-TH1-ND Q5556720A SAM8945 |
| Operating Temperature | -65°C ~ 125°C | Number of Ports | 1 |
| Mounting Type | Through Hole | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | - | Impedance | 75 Ohm |
| Housing Color | Gold | Frequency - Max | 6GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | MCX Connector Jack, Female Socket 75 Ohm Through Hole Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | MCX | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
