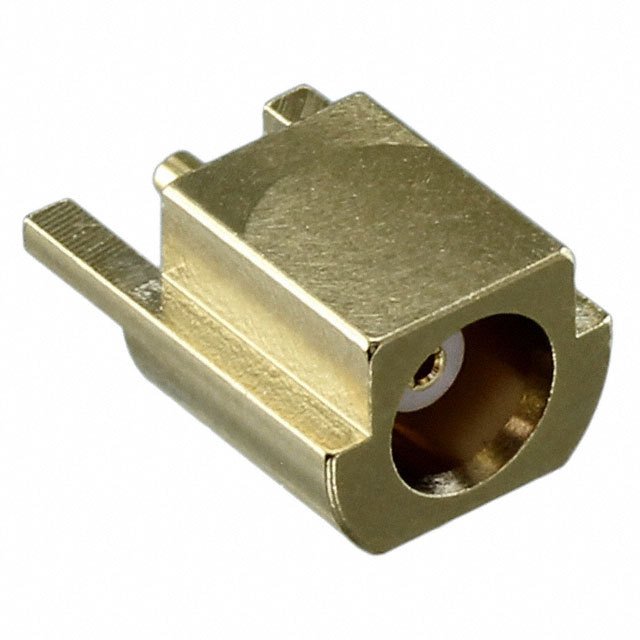

MCX-J-P-H-ST-EM1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCX-J-P-H-ST-EM1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MCX-J-P-H-ST-EM1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MCX-J-P-H-ST-EM1 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN MCX JACK STR 50 OHM EDGEMNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.163 | $1.115 | $1.022 | $0.975 | $0.929 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.813 | $0.79 | $0.674 | $0.627 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MCX-J-P-H-ST-EM1 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN MCX JACK STR 50 OHM EDGEMNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49327 pcs | Data sheet | MCX-y-P-H-yy-yyy DatasheetMCX-J-P-H-ST-EM1 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Solder |
| Series | - | Packaging | Tray |
| Other Names | SAM9695 | Operating Temperature | -65°C ~ 125°C |
| Number of Ports | 1 | Mounting Type | Board Edge, Cutout; Surface Mount |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 6GHz | Features | - |
| Fastening Type | Snap-On | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | MCX Connector Jack, Female Socket 50 Ohm Board Edge, Cutout; Surface Mount Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | MCX |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | - | Body Material | Brass |
| Body Finish | Gold |
