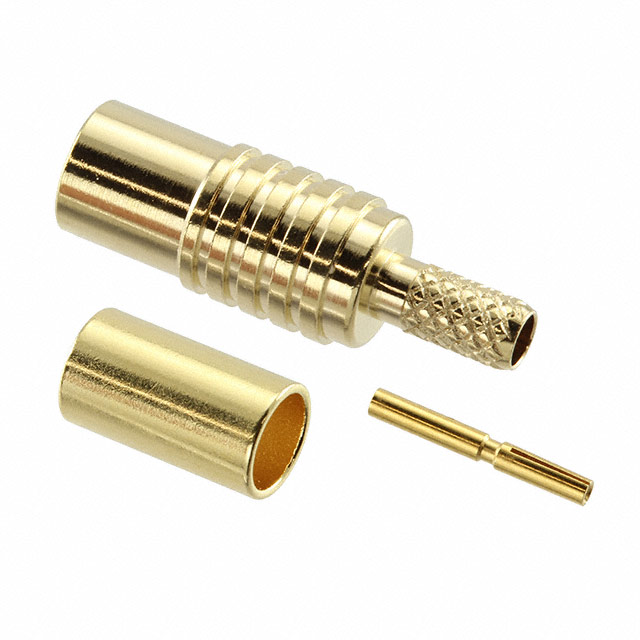

MCX-J-C-H-ST-CA1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MCX-J-C-H-ST-CA1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MCX-J-C-H-ST-CA1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MCX-J-C-H-ST-CA1 |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN MCX JACK STR 50 OHM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.711 | $1.643 | $1.506 | $1.437 | $1.369 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.198 | $1.163 | $0.992 | $0.924 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MCX-J-C-H-ST-CA1 | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN MCX JACK STR 50 OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32393 pcs | Data sheet | MCX CA Series DatasheetMCX-J-C-H-ST-CA1 Drawing |
| Category | Connectors, Interconnects | Shield Termination | Crimp |
| Series | - | Packaging | - |
| Other Names | MCX-J-C-H-ST-CA1-ND SAM11470 |
Operating Temperature | -65°C ~ 125°C |
| Number of Ports | 1 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50 Ohm | Housing Color | Gold |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | MCX Connector Jack, Female Socket 50 Ohm Free Hanging (In-Line) Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | MCX | Center Contact Plating | Gold |
| Center Contact Material | Copper Alloy | Cable Group | RG-174, 316 |
| Body Material | Brass | Body Finish | Gold |
