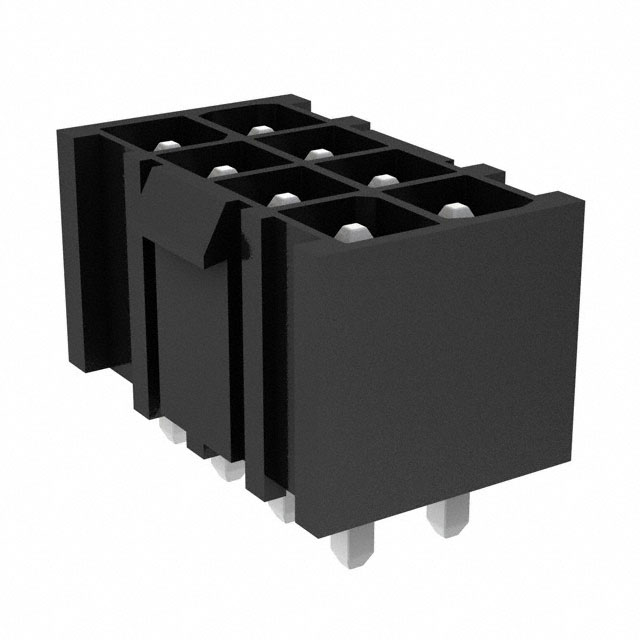

IPBT-104-H1-T-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPBT-104-H1-T-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPBT-104-H1-T-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPBT-104-H1-T-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | PWR MATE TERM STRIP HDR 8POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 30 pcs | 120 pcs | 510 pcs | |
|---|---|---|---|---|---|
| $0.67 | $0.571 | $0.522 | $0.435 | ||
| 1020 pcs | 5010 pcs | 10020 pcs | |||
| $0.373 | $0.33 | $0.323 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPBT-104-H1-T-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | PWR MATE TERM STRIP HDR 8POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62396 pcs | Data sheet | IPBT Series DatasheetIPBT-1yy-yy-yy-D-yy DrawingIPBT Through Hole Footprint |
| Category | Connectors, Interconnects | Voltage Rating | 400VAC, 565VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Power Mate® IPBT |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tube | Overall Contact Length | 0.510" (12.95mm) |
| Other Names | IPBT-104-H1-T-D-ND SAM10555 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.380" (9.65mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 8 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | 0.260" (6.60mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
