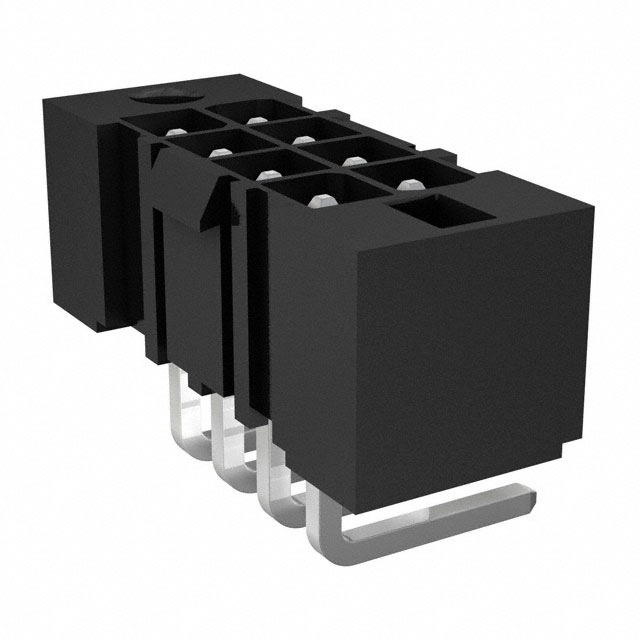

IPBT-104-H1-T-D-RA-GP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IPBT-104-H1-T-D-RA-GP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy IPBT-104-H1-T-D-RA-GP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | IPBT-104-H1-T-D-RA-GP |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | 4 POS ISOLATED TERM PWR HEADER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 19 pcs | 38 pcs | 57 pcs | 114 pcs |
|---|---|---|---|---|---|
| $0.988 | $0.949 | $0.87 | $0.83 | $0.791 | |
| 266 pcs | 513 pcs | 1007 pcs | 2508 pcs | ||
| $0.692 | $0.672 | $0.573 | $0.534 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | IPBT-104-H1-T-D-RA-GP | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | 4 POS ISOLATED TERM PWR HEADER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58086 pcs | Data sheet | IPBT Series DatasheetIPBT-1yy-yy-yy-D-yy Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 400VAC, 565VDC |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Power Mate® IPBT |
| Row Spacing - Mating | 0.165" (4.20mm) | Pitch - Mating | 0.165" (4.20mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | IPBT-104-H1-T-D-RA-GP-ND Q8253411 SAM8817 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.424" (10.77mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mating Flange |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 8 position 0.165" (4.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.147" (3.73mm) | Contact Length - Mating | 0.260" (6.60mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
