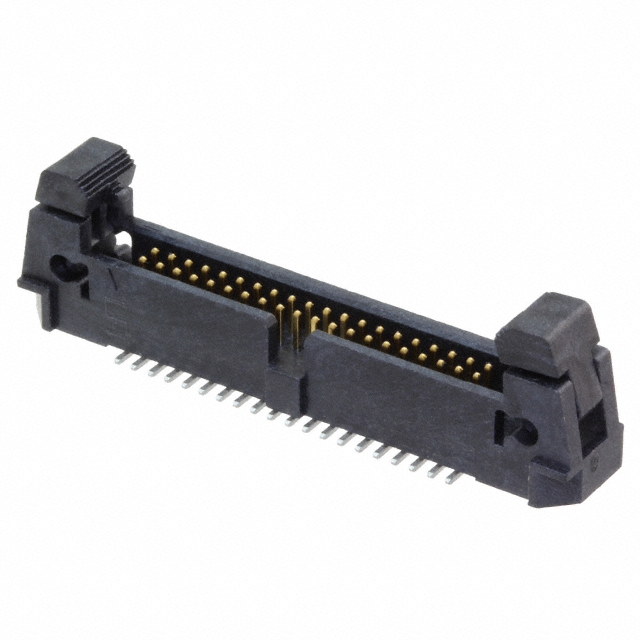

EHF-120-01-F-D-SM

EHF-120-01-F-D-SM
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHF-120-01-F-D-SM with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number EHF-120-01-F-D-SM
Manufacturer Samtec, Inc.
Description .050 EJECTOR HDR ASSY
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 24316 pcs
Reference Price
(In US Dollars)		1 pcs14 pcs112 pcs504 pcs1008 pcs
$2.233$2.142$1.785$1.517$1.294

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$2.233

Product parameter

Part Number EHF-120-01-F-D-SM Manufacturer Samtec, Inc.
Description .050 EJECTOR HDR ASSY Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 24316 pcs Data sheet SHF,ESHF,EHF,ECF DatasheetEHF-1xx-01-xx-D-xx-xx-xx Drawing
Category Connectors, Interconnects Voltage Rating -
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series EHF
Row Spacing - Mating 0.050" (1.27mm) Pitch - Mating 0.050" (1.27mm)
Packaging Tube Overall Contact Length -
Other Names SAM9274 Operating Temperature -55°C ~ 125°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 40 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating -
Mated Stacking Heights - Manufacturer Standard Lead Time 3 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Insulation Height 0.325" (8.25mm) Insulation Color Black
Ingress Protection - Features Keying Slot
Fastening Type Latch Lock/Eject Hooks Detailed Description Connector Header Surface Mount 40 position 0.050" (1.27mm)
Current Rating 1.75A Contact Type Male Pin
Contact Shape Square Contact Material Phosphor Bronze
Contact Length - Post - Contact Length - Mating 0.120" (3.05mm)
Contact Finish Thickness - Post - Contact Finish Thickness - Mating 3.00µin (0.076µm)
Contact Finish - Post Tin Contact Finish - Mating Gold
Connector Type Header Applications -
