Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > EHF-120-01-F-D-RA

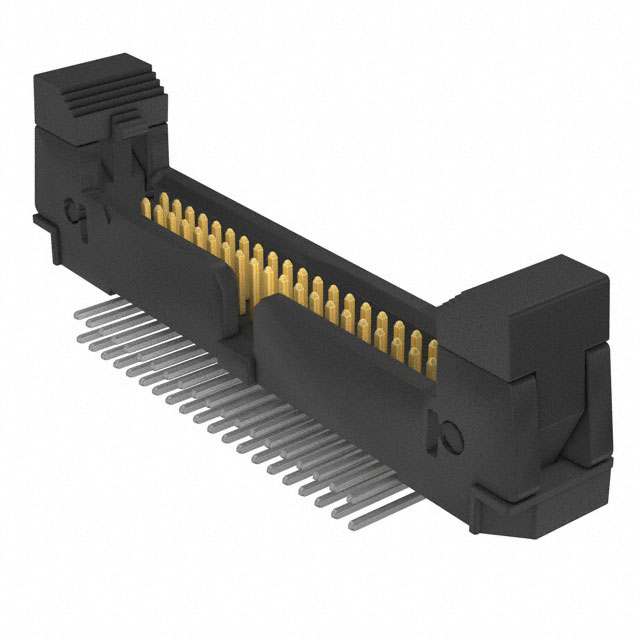

EHF-120-01-F-D-RA

EHF-120-01-F-D-RA
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EHF-120-01-F-D-RA with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number EHF-120-01-F-D-RA
Manufacturer Samtec, Inc.
Description .050 EJECTOR HEADER ASSEMBLY
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 23081 pcs
Reference Price
(In US Dollars)		1 pcs14 pcs112 pcs504 pcs1008 pcs
$2.251$2.157$1.782$1.501$1.313

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$2.251

Product parameter

Part Number EHF-120-01-F-D-RA Manufacturer Samtec, Inc.
Description .050 EJECTOR HEADER ASSEMBLY Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 23081 pcs Data sheet EHF FootprintSHF,ESHF,EHF,ECF DatasheetEHF-1xx-01-xx-D-xx-xx-xx Drawing
Category Connectors, Interconnects Voltage Rating -
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series EHF
Row Spacing - Mating 0.050" (1.27mm) Pitch - Mating 0.050" (1.27mm)
Packaging Tube Overall Contact Length -
Other Names EHF-120-01-F-D-RA-ND
SAM11045		 Operating Temperature -55°C ~ 125°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 40 Mounting Type Through Hole, Right Angle
Material Flammability Rating - Mated Stacking Heights -
Manufacturer Standard Lead Time 3 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled Insulation Height 0.263" (6.67mm)
Insulation Color Black Ingress Protection -
Features Keying Slot Fastening Type Latch Lock/Eject Hooks
Detailed Description Connector Header Through Hole, Right Angle 40 position 0.050" (1.27mm) Current Rating 1.75A
Contact Type Male Pin Contact Shape Square
Contact Material Phosphor Bronze Contact Length - Post 0.090" (2.29mm)
Contact Length - Mating 0.120" (3.05mm) Contact Finish Thickness - Post -
Contact Finish Thickness - Mating 3.00µin (0.076µm) Contact Finish - Post Tin
Contact Finish - Mating Gold Connector Type Header
Applications -
