CES-103-01-L-D
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CES-103-01-L-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CES-103-01-L-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CES-103-01-L-D |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | LOW PROFILE .025" SQUARE STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $0.357 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CES-103-01-L-D | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | LOW PROFILE .025" SQUARE STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 96122 pcs | Data sheet | SLW, CES Series DatasheetCES-1xx-0x-x-D Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | CES | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Operating Temperature | -55°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.200" (5.08mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 6 Position Receptacle Connector Through Hole | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.128" (3.25mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
- Related products
- Related news
Related products
- Part#:
CES-103-01-G-S - Manufacturers:
Samtec, Inc. - Description:
LOW PROFILE .025" SQUARE STRIPS - In Stock:
163507
- Part#:

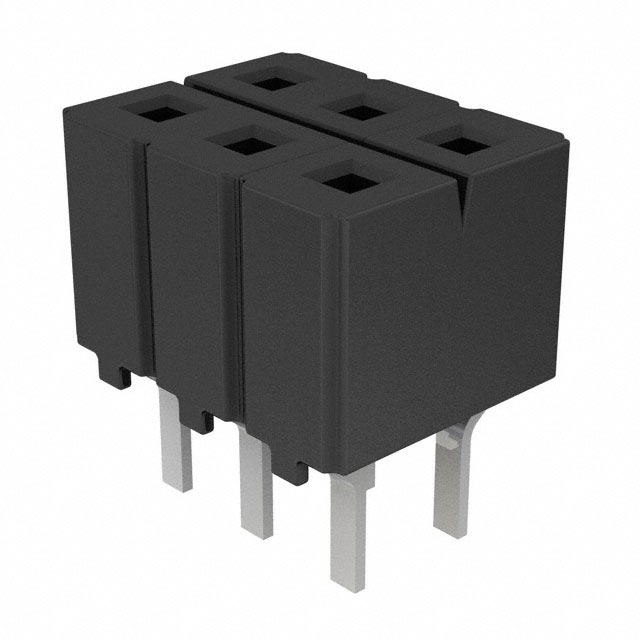

CES-103-01-T-D - Manufacturers:
