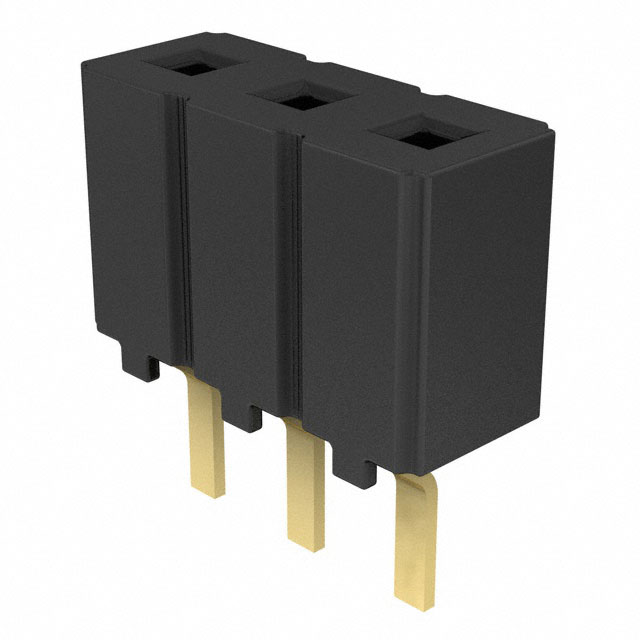

CES-103-01-G-S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CES-103-01-G-S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CES-103-01-G-S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CES-103-01-G-S |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | LOW PROFILE .025" SQUARE STRIPS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.345 | $0.287 | $0.212 | $0.17 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.154 | $0.135 | $0.133 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CES-103-01-G-S | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | LOW PROFILE .025" SQUARE STRIPS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 163507 pcs | Data sheet | SLW, CES Series DatasheetCES-1xx-xx-x-S-xx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | CES | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Other Names | CES-103-01-G-S-ND SAM10951 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.200" (5.08mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 3 Position Receptacle Connector Through Hole |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.128" (3.25mm) | Contact Finish Thickness - Post | 3.00µin (0.076µm) |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
