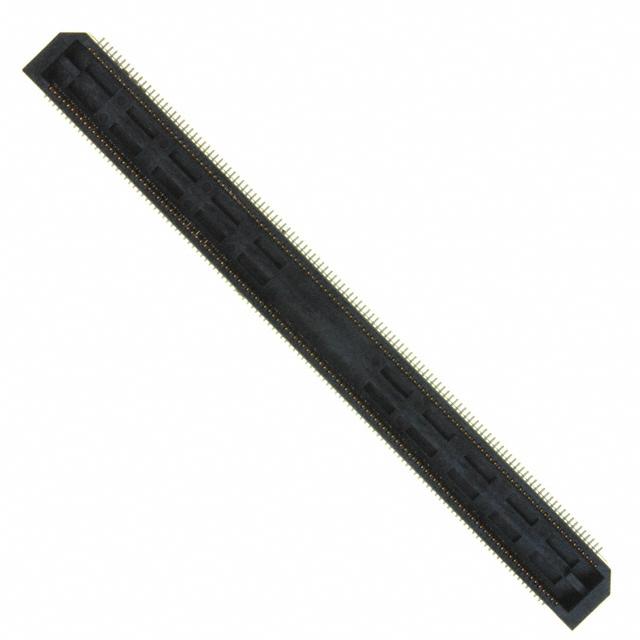

BTH-120-01-L-D-A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BTH-120-01-L-D-A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BTH-120-01-L-D-A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BTH-120-01-L-D-A |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | CONN HDR 240POS 0.5MM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $3.627 | $3.413 | $3.317 | $3.093 | ||
| 120 pcs | 270 pcs | 510 pcs | 1020 pcs | ||
| $2.987 | $2.773 | $2.72 | $2.613 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | BTH-120-01-L-D-A | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | CONN HDR 240POS 0.5MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12399 pcs | Data sheet | BTH Series DrawingBTH Surface Mount FootprintBTH,BSH Series Datasheet |
| Category | Connectors, Interconnects | Series | BTH |
| Pitch | 0.020" (0.50mm) | Packaging | Tray |
| Other Names | BTH12001LDA | Number of Rows | 2 |
| Number of Positions | 240 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mated Stacking Heights | 5mm |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.168" (4.27mm) | Features | Board Guide |
| Detailed Description | 240 Position Connector Header, Outer Shroud Contacts Surface Mount Gold | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Connector Type | Header, Outer Shroud Contacts |
