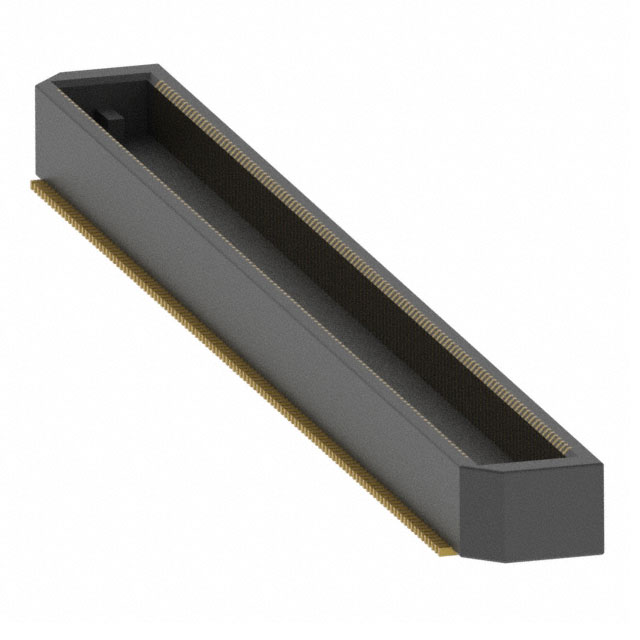

BTH-120-01-H-D-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BTH-120-01-H-D-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BTH-120-01-H-D-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BTH-120-01-H-D-TR |
|---|---|
| Manufacturer | Samtec, Inc. |
| Description | .5MM DOUBLE ROW TERMINAL ASSEMBL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 125 pcs | ||||
|---|---|---|---|---|---|
| $4.471 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | BTH-120-01-H-D-TR | Manufacturer | Samtec, Inc. |
|---|---|---|---|
| Description | .5MM DOUBLE ROW TERMINAL ASSEMBL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8762 pcs | Data sheet | BTH,BSH Series Datasheet |
| Category | Connectors, Interconnects | Series | BTH |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Number of Rows | 2 | Number of Positions | 240 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mated Stacking Heights | 5mm | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.168" (4.27mm) |
| Features | - | Detailed Description | 240 Position Connector Header, Outer Shroud Contacts Surface Mount Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Header, Outer Shroud Contacts |
