STK850

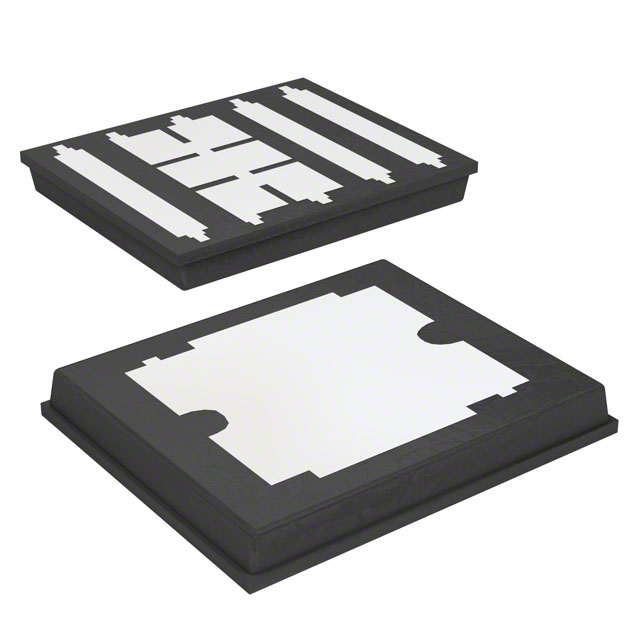

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STK850 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STK850 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STK850 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 30V 30A POLARPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.798 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STK850 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET N-CH 30V 30A POLARPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 40501 pcs | Data sheet | STK850 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±16V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PolarPak® | Series | STripFET™ |
| Rds On (Max) @ Id, Vgs | 2.9 mOhm @ 15A, 10V | Power Dissipation (Max) | 5.2W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | PolarPak® |
| Other Names | 497-5124-2 | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 3150pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 32.5nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | N-Channel 30V 30A (Tc) 5.2W (Tc) Surface Mount PolarPak® |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
