STK820

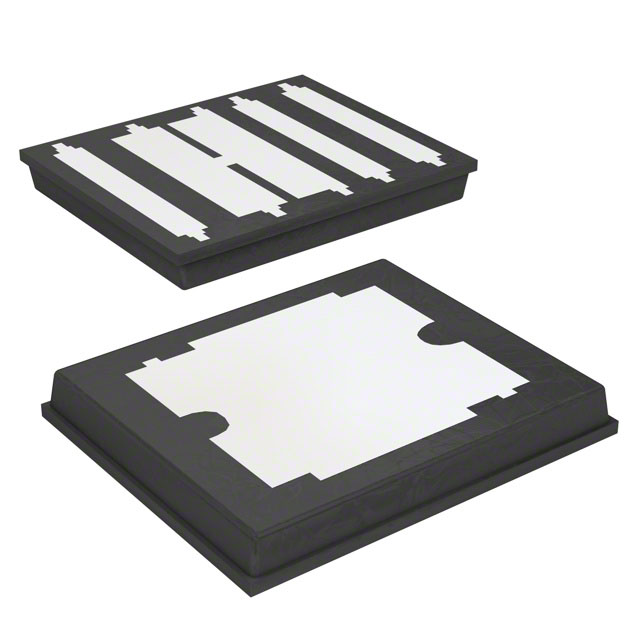

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STK820 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STK820 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STK820 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 25V 21A POLARPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.274 | $1.151 | $0.925 | $0.719 | $0.596 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | STK820 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET N-CH 25V 21A POLARPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 53009 pcs | Data sheet | STK820 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±16V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PolarPak® | Series | STripFET™ |
| Rds On (Max) @ Id, Vgs | 7.3 mOhm @ 10.5A, 10V | Power Dissipation (Max) | 5.2W (Ta) |
| Packaging | Cut Tape (CT) | Package / Case | PolarPak® |
| Other Names | 497-6324-1 | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1425pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 9.5nC @ 4.5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Drain to Source Voltage (Vdss) | 25V | Detailed Description | N-Channel 25V 21A (Ta) 5.2W (Ta) Surface Mount PolarPak® |
| Current - Continuous Drain (Id) @ 25°C | 21A (Ta) |
