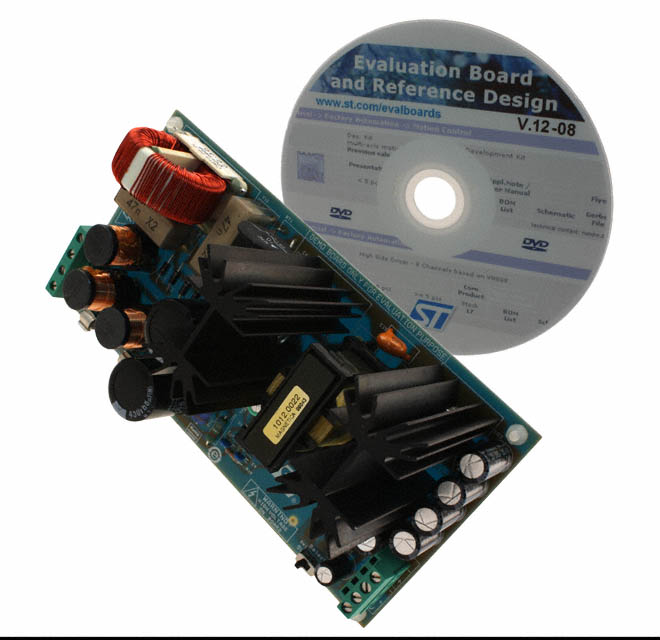

STEVAL-ISA054V1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STEVAL-ISA054V1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STEVAL-ISA054V1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STEVAL-ISA054V1 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | BOARD DEMO STW9N150 100W 3PHASE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STEVAL-ISA054V1 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | BOARD DEMO STW9N150 100W 3PHASE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4147 pcs | Data sheet | STEVAL-ISA054V1 Datasheet |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 24V, 3.3V or 5V |
| Voltage - Input | 180 ~ 265 VAC, 320 ~ 480 VAC | Utilized IC / Part | L5970, STW9N150, UC3844B |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | Flyback | Power - Output | 100W |
| Outputs and Type | 2, Isolated | Other Names | 497-8849 STEVALISA054V1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Main Purpose | AC/DC, Primary Side |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Switching | 250kHz |
| Detailed Description | L5970, STW9N150, UC3844B - AC/DC, Primary Side 2, Isolated Outputs Evaluation Board | Current - Output | 4A, 1A |
| Board Type | Fully Populated |
