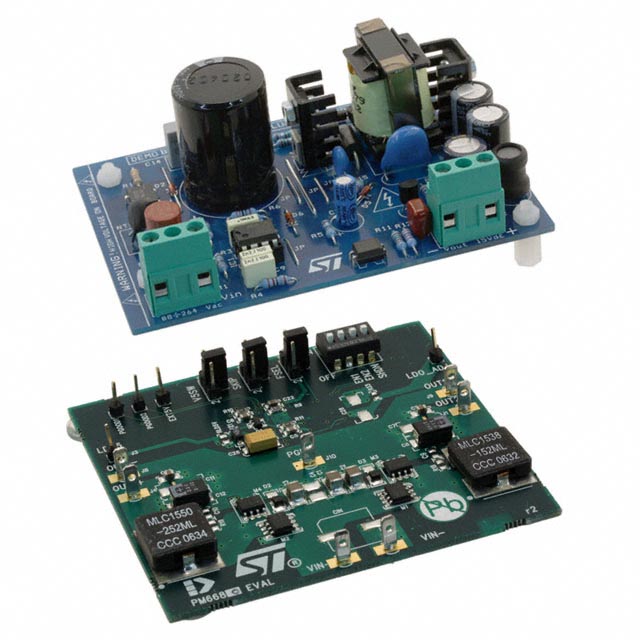

STEVAL-ISA053V1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STEVAL-ISA053V1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STEVAL-ISA053V1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STEVAL-ISA053V1 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | BOARD EVALUATION FOR PM6680 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STEVAL-ISA053V1 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | BOARD EVALUATION FOR PM6680 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4518 pcs | Data sheet | PM6680STEVAL-ISA053V1 Data Brief |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 1.05V, 1.5V, 5V |
| Voltage - Input | 6 V ~ 28 V | Utilized IC / Part | PM6680 |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | Buck | Outputs and Type | 3, Non-Isolated |
| Other Names | 497-6378 STEVALISA053V1 |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Main Purpose | DC/DC, Step Down with LDO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Frequency - Switching | 200kHz, 300kHz | Detailed Description | PM6680 - DC/DC, Step Down with LDO 3, Non-Isolated Outputs Evaluation Board |
| Current - Output | 5A, 5A, 100mA | Board Type | Fully Populated |
