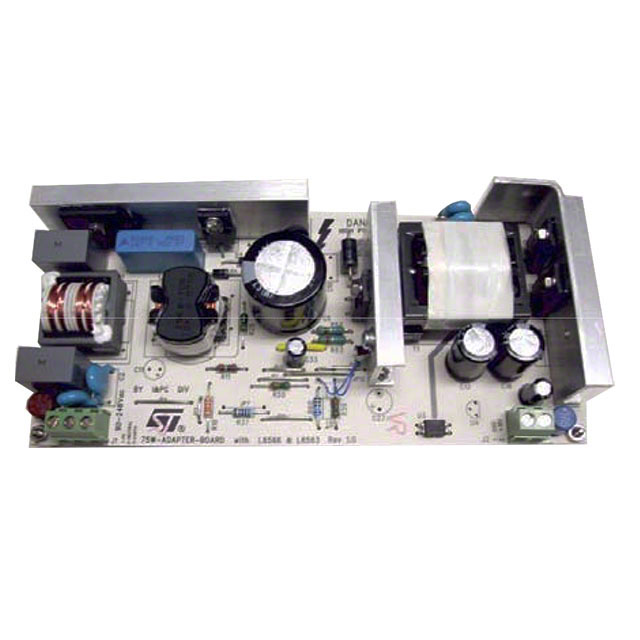

EVL6566A-75WADP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EVL6566A-75WADP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EVL6566A-75WADP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EVL6566A-75WADP |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | BOARD EVAL FOR L6566A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $37.546 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EVL6566A-75WADP | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | BOARD EVAL FOR L6566A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 845 pcs | Data sheet | L6563/AEVL6566A-75WADP App NoteEVL6566A-75WADP Data BriefL6566ATSM1014 |
| Category | Development Boards, Kits, Programmers | Voltage - Output | 19V |
| Voltage - Input | 90 ~ 264 VAC | Utilized IC / Part | L6563, L6566A, TSM1014 |
| Supplied Contents | Board(s) | Series | - |
| Regulator Topology | - | Power - Output | 75W |
| Outputs and Type | 1, Isolated | Other Names | 497-6449 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Main Purpose | AC/DC, Primary and Secondary Side with PFC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Frequency - Switching | 65kHz |
| Detailed Description | L6563, L6566A, TSM1014 - AC/DC, Primary and Secondary Side with PFC 1, Isolated Outputs Evaluation Board | Current - Output | 4A |
| Board Type | Fully Populated |
