EMIF08-1005M16

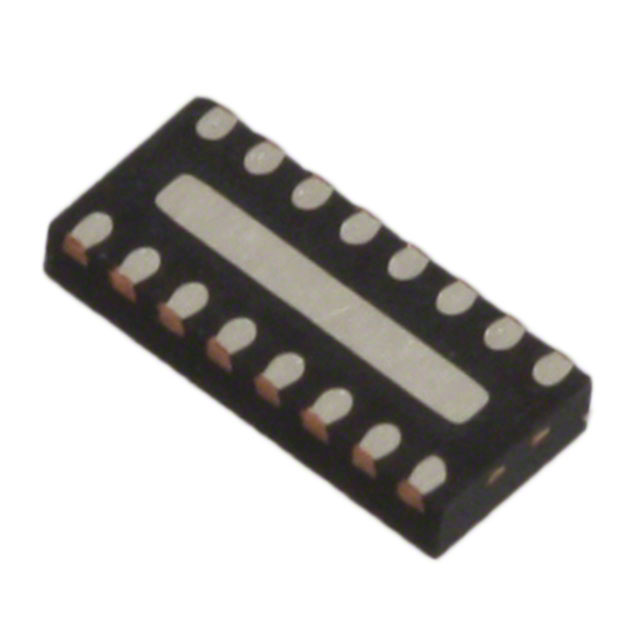

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EMIF08-1005M16 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EMIF08-1005M16 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EMIF08-1005M16 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | FILTER RC(PI) 100 OHM/45PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | ||
|---|---|---|---|---|---|
| $0.23 | $0.219 | $0.21 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | EMIF08-1005M16 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | FILTER RC(PI) 100 OHM/45PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 107190 pcs | Data sheet | EMIF08-1005M16 |
| Category | Filters | Voltage - Rated | - |
| Values | R = 100 Ohms, C = 45pF (Total) | Type | Low Pass |
| Technology | RC (Pi) | Size / Dimension | 0.130" L x 0.059" W (3.30mm x 1.50mm) |
| Series | EMIF | Resistance - Channel (Ohms) | 100 |
| Packaging | Tape & Reel (TR) | Package / Case | 16-UFDFN Exposed Pad |
| Other Names | 497-7742-2 EMIF08-1005M16-ND EMIF081005M16 |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 8 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height | 0.024" (0.60mm) |
| Filter Order | 2nd | ESD Protection | Yes |
| Detailed Description | RC (Pi) EMI Filter 2nd Order Low Pass 8 Channel R = 100 Ohms, C = 45pF (Total) 10mA 16-UFDFN Exposed Pad | Current | 10mA |
| Center / Cutoff Frequency | 100MHz (Cutoff) | Attenuation Value | -34dB @ 900MHz ~ 1.8GHz |
| Applications | Data Lines for Mobile Devices |
