EMIF06-VID01F2

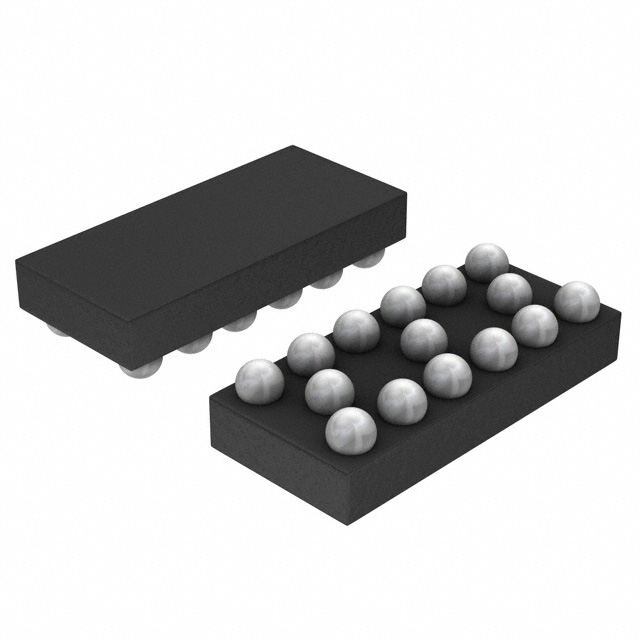

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EMIF06-VID01F2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy EMIF06-VID01F2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | EMIF06-VID01F2 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | IC FILTER EMI 6LINE ESD FLIPCHIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.123 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | EMIF06-VID01F2 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | IC FILTER EMI 6LINE ESD FLIPCHIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 183444 pcs | Data sheet | EMIF06-VID01F2 |
| Category | Filters | Values | R = 100 Ohms, C = 16pF (Total) |
| Type | Low Pass | Technology | RC (Pi) |
| Size / Dimension | 0.115" L x 0.051" W (2.92mm x 1.29mm) | Series | EMIF |
| Resistance - Channel (Ohms) | 100 | Packaging | Tape & Reel (TR) |
| Package / Case | 15-WFBGA, FCBGA | Other Names | 497-4543-2 |
| Operating Temperature | -40°C ~ 85°C | Number of Channels | 6 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height | 0.028" (0.70mm) | Filter Order | 2nd |
| ESD Protection | Yes | Detailed Description | RC (Pi) EMI Filter 2nd Order Low Pass 6 Channel R = 100 Ohms, C = 16pF (Total) 10mA 15-WFBGA, FCBGA |
| Current | 10mA | Center / Cutoff Frequency | - |
| Attenuation Value | 40dB @ 900MHz | Applications | Data Lines for Mobile Devices |
