Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > BAT46JFILM

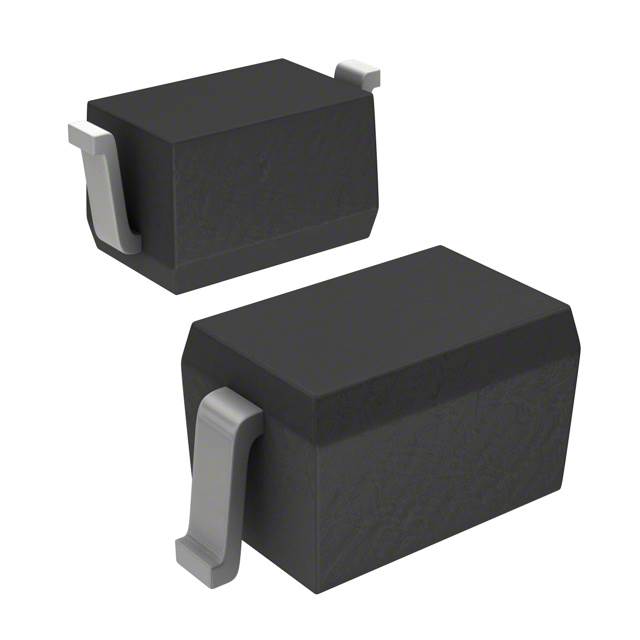

BAT46JFILM

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BAT46JFILM with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BAT46JFILM
Manufacturer	STMicroelectronics
Description	DIODE SCHOTTKY 100V 150MA SOD323
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1223413 pcs
Reference Price (In US Dollars)	3000 pcs	6000 pcs	15000 pcs	30000 pcs	75000 pcs
Reference Price (In US Dollars)	$0.03	$0.027	$0.024	$0.023	$0.02

Product parameter
Data sheet

Product parameter

Part Number	BAT46JFILM	Manufacturer	STMicroelectronics
Description	DIODE SCHOTTKY 100V 150MA SOD323	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1223413 pcs	Data sheet	BAT46 Series
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	450mV @ 10mA
Voltage - DC Reverse (Vr) (Max)	100V	Supplier Device Package	SOD-323
Speed	Small Signal =< 200mA (Io), Any Speed	Series	-
Packaging	Tape & Reel (TR)	Package / Case	SC-76, SOD-323
Other Names	497-6653-2 BAT46JFILM-ND	Operating Temperature - Junction	150°C (Max)
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Detailed Description	Diode Schottky 100V 150mA (DC) Surface Mount SOD-323
Current - Reverse Leakage @ Vr	5µA @ 75V	Current - Average Rectified (Io)	150mA (DC)
Capacitance @ Vr, F	10pF @ 0V, 1MHz	Base Part Number	BAT46
