Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > BAT46

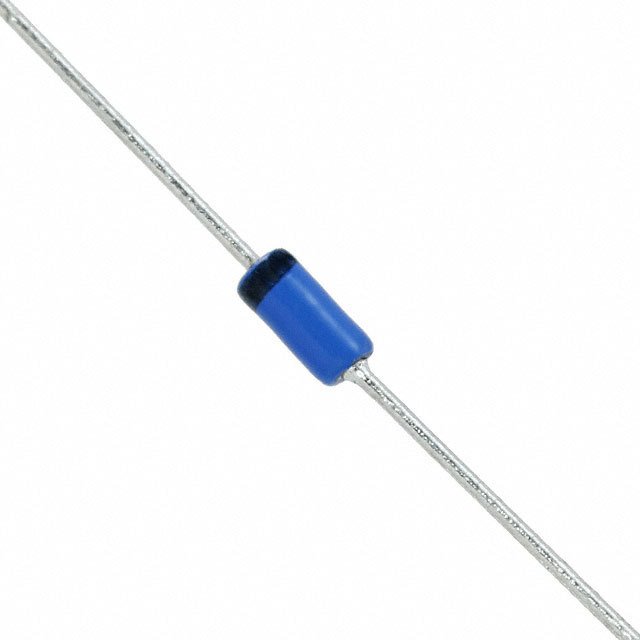

BAT46

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BAT46 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	BAT46
Manufacturer	STMicroelectronics
Description	DIODE SCHOTTKY 100V 150MA DO35
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 713050 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.143	$0.106	$0.066	$0.045	$0.035

Product parameter
Data sheet

Product parameter

Part Number	BAT46	Manufacturer	STMicroelectronics
Description	DIODE SCHOTTKY 100V 150MA DO35	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	713050 pcs	Data sheet	BAT46
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	450mV @ 10mA
Voltage - DC Reverse (Vr) (Max)	100V	Supplier Device Package	DO-35
Speed	Small Signal =< 200mA (Io), Any Speed	Series	-
Packaging	Cut Tape (CT)	Package / Case	DO-204AH, DO-35, Axial
Other Names	497-3768-1	Operating Temperature - Junction	-65°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Schottky	Detailed Description	Diode Schottky 100V 150mA (DC) Through Hole DO-35
Current - Reverse Leakage @ Vr	5µA @ 75V	Current - Average Rectified (Io)	150mA (DC)
Capacitance @ Vr, F	10pF @ 0V, 1MHz	Base Part Number	BAT46
