2N2369A

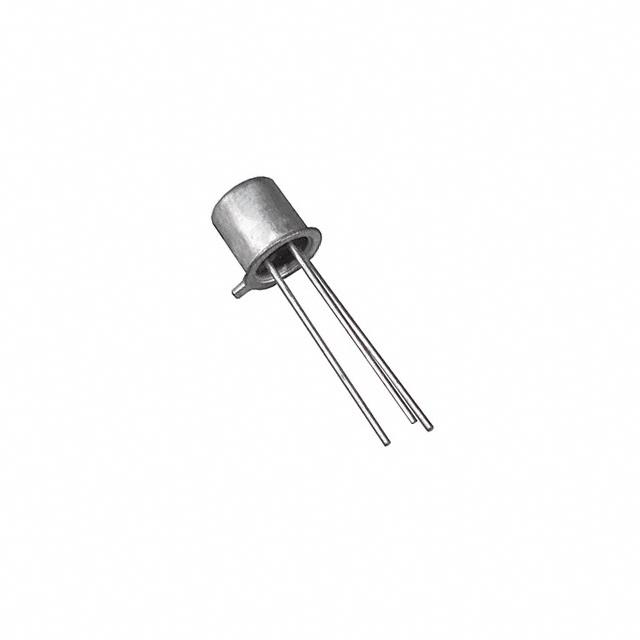

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2N2369A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2N2369A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2N2369A |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | TRANS NPN 15V 0.2A TO-18 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.119 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2N2369A | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | TRANS NPN 15V 0.2A TO-18 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 175599 pcs | Data sheet | 2N2369A |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 15V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 10mA, 100mA | Transistor Type | NPN |
| Supplier Device Package | TO-18 | Series | - |
| Power - Max | 360mW | Packaging | Tube |
| Package / Case | TO-206AA, TO-18-3 Metal Can | Other Names | 497-3107-5 |
| Operating Temperature | -65°C ~ 200°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Frequency - Transition | 675MHz | Detailed Description | Bipolar (BJT) Transistor NPN 15V 200mA 675MHz 360mW Through Hole TO-18 |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 10mA, 1V | Current - Collector Cutoff (Max) | 400nA |
| Current - Collector (Ic) (Max) | 200mA | Base Part Number | 2N2369A |
