2N2369A

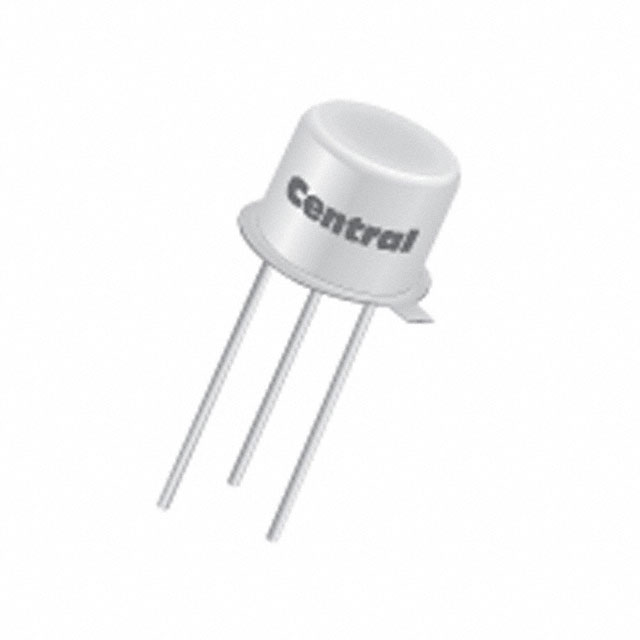

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2N2369A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2N2369A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2N2369A |
|---|---|
| Manufacturer | Microsemi |
| Description | TRANS NPN 15V TO18 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $2.456 | $2.194 | $1.974 | $1.799 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.623 | $1.457 | $1.228 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2N2369A | Manufacturer | Microsemi |
|---|---|---|---|
| Description | TRANS NPN 15V TO18 | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 27730 pcs | Data sheet | 2N2369A, 2N4449 |
| Category | Discrete Semiconductor Products | Voltage - Collector Emitter Breakdown (Max) | 15V |
| Vce Saturation (Max) @ Ib, Ic | 450mV @ 10mA, 100mA | Transistor Type | NPN |
| Supplier Device Package | TO-18 (TO-206AA) | Series | - |
| Power - Max | 360mW | Packaging | Bulk |
| Package / Case | TO-206AA, TO-18-3 Metal Can | Other Names | 2N2369AMS |
| Operating Temperature | -65°C ~ 200°C (TJ) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Frequency - Transition | - |
| Detailed Description | Bipolar (BJT) Transistor NPN 15V 360mW Through Hole TO-18 (TO-206AA) | DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 100mA, 1V |
| Current - Collector Cutoff (Max) | 400nA |
