Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > 1N5820

1N5820

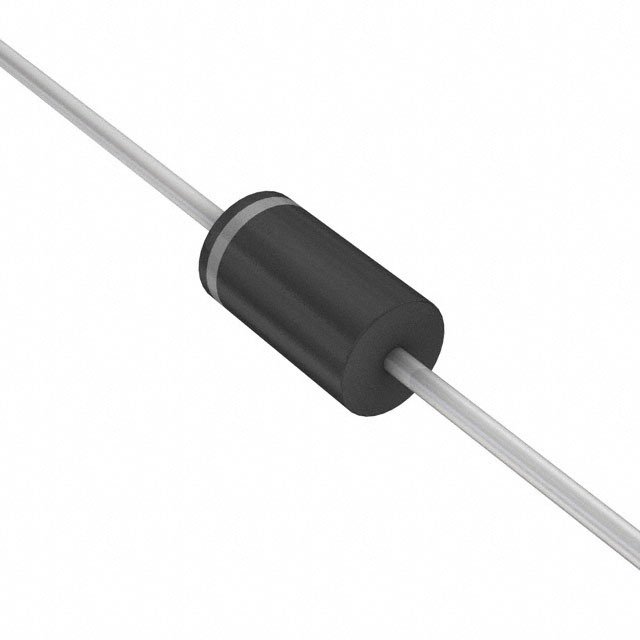

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1N5820 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1N5820
Manufacturer	STMicroelectronics
Description	DIODE SCHOTTKY 20V 3A DO201AD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 397926 pcs
Reference Price (In US Dollars)	6000 pcs
Reference Price (In US Dollars)	$0.049

Product parameter
Data sheet

Product parameter

Part Number	1N5820	Manufacturer	STMicroelectronics
Description	DIODE SCHOTTKY 20V 3A DO201AD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	397926 pcs	Data sheet	1N582x
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	475mV @ 3A
Voltage - DC Reverse (Vr) (Max)	20V	Supplier Device Package	DO-201AD
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Tape & Box (TB)	Package / Case	DO-201AD, Axial
Other Names	1N5820ST 1N5820ST-ND 497-6642-2 497-6642-2-ND 497-6642-3	Operating Temperature - Junction	150°C (Max)
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 20V 3A Through Hole DO-201AD	Current - Reverse Leakage @ Vr	2mA @ 20V
Current - Average Rectified (Io)	3A	Capacitance @ Vr, F	-
Base Part Number	1N5820
