Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > 1N5819M-13

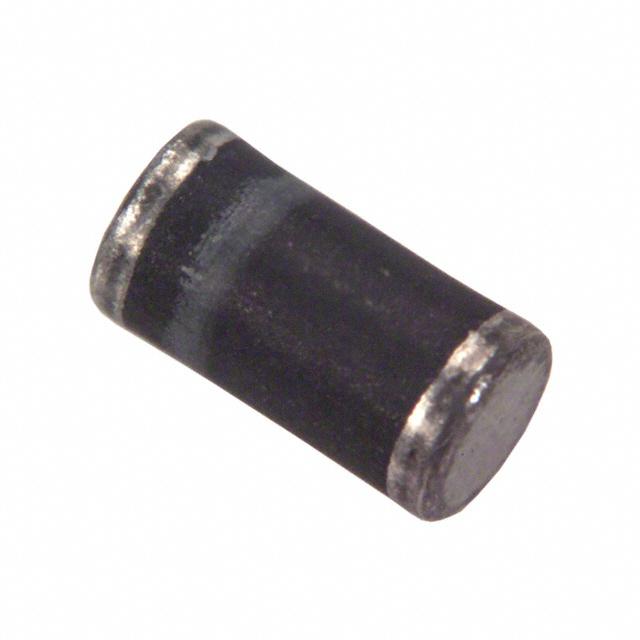

1N5819M-13

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1N5819M-13 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1N5819M-13
Manufacturer	Diodes Incorporated
Description	DIODE SCHOTTKY 40V 1A MELF
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 5016 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	1N5819M-13	Manufacturer	Diodes Incorporated
Description	DIODE SCHOTTKY 40V 1A MELF	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5016 pcs	Data sheet	1N5817M-19M Datasheet
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	600mV @ 1A
Voltage - DC Reverse (Vr) (Max)	40V	Supplier Device Package	MELF
Speed	Fast Recovery = 200mA (Io)	Series	-
Packaging	Cut Tape (CT)	Package / Case	DO-213AB, MELF (Glass)
Other Names	1N5819M13 1N5819MCT 1N5819MCT-ND 1N5819MDICT	Operating Temperature - Junction	-60°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Diode Type	Schottky
Detailed Description	Diode Schottky 40V 1A Surface Mount MELF	Current - Reverse Leakage @ Vr	1mA @ 40V
Current - Average Rectified (Io)	1A	Capacitance @ Vr, F	-
Base Part Number	1N5819
