Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > EVB_RT2859BHGQW

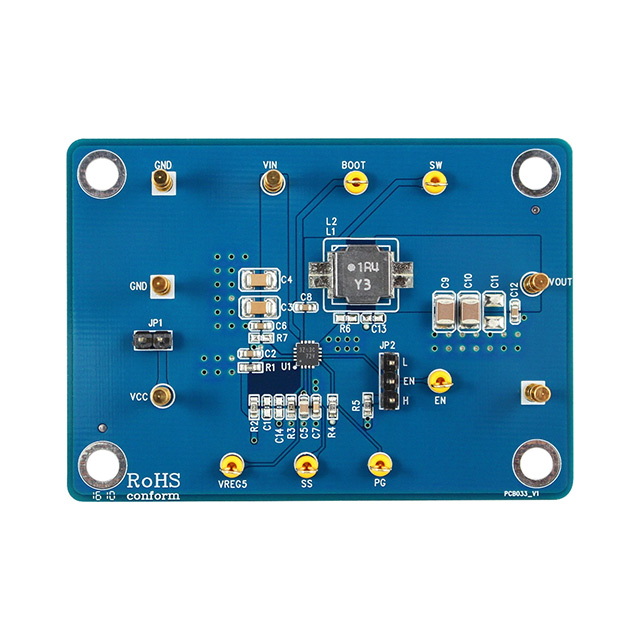

EVB_RT2859BHGQW

EVB_RT2859BHGQW

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EVB_RT2859BHGQW with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	EVB_RT2859BHGQW
Manufacturer	Richtek
Description	EVAL MODULE FOR RT2859BHGQW
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2298 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$16.197

Product parameter
Data sheet

Product parameter

Part Number	EVB_RT2859BHGQW	Manufacturer	Richtek
Description	EVAL MODULE FOR RT2859BHGQW	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2298 pcs	Data sheet	RT2859A, RT2859B EVB_RT2859BHGQW
Category	Development Boards, Kits, Programmers	Voltage - Output	1.05V
Voltage - Input	4.5 V ~ 18 V	Utilized IC / Part	RT2859B
Supplied Contents	Board(s)	Series	ACOT™
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	16 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency - Switching	650kHz	Detailed Description	RT2859B ACOT™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	3A	Board Type	Fully Populated
